大数据集群配置-过程笔记

传统大数据集群配置

环境说明

传统大数据集群，即 Hadoop 那一套集群配置，HDFS + Spark + Yarn

但是考虑到真实场景，还需要其余组件，所以暂定为

Hadoop + Spark + Flink + Hive + Kafka + DolphinScheduler + Zookeeper + Doris + MySQL 版本对应关系定为

分类	组件	版本	说明
基础	Hadoop	3.3.6	包含 Yarn

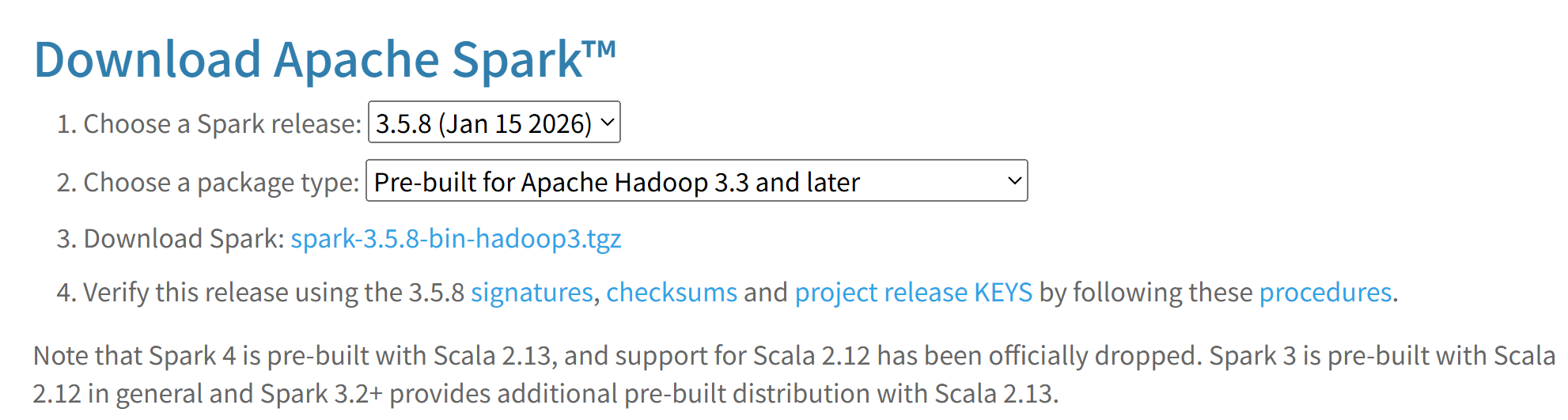

批处理	Spark	3.4.2	需下载 pre-built for hadoop 3.3 来支持 spark
流处理	Flink	1.17.2	x
数仓	Hive	3.1.3	采用最成熟的版本，不使用 4.0 版本，某些支持还不成熟，注意当前 hive 3.1.3 版本是基于 JDK8 编译的，如果想使用 JDK17+ 那么需要 hive 4.x
消息队列	Kafka	3.6.1	支持 KRaft 模式，逐步去 Zookeeper 化
调度工具	DolphinScheduler	3.2.2	x
注册中心	Zookeeper	3.8.4	Kafka 和 Hadoop HA 使用
数据库	MySQL	8.0.x	x
OLAP	Doris	2.0.x	x
环境	JDK	8	x
环境	Python	3.11	x

资源配置说明

如果可用 5 台 4C16G 的节点来配置，则可为

服务组件	Node 1 (Master)	Node 2 (Master)	Node 3 (Master)	Node 4 (Worker)	Node 5 (Worker)	服务职能与部署理由
基础协调
Zookeeper	✅	✅	✅	❌	❌	集群大脑。3节点部署满足高可用选举，不占用 Worker 资源。
JournalNode	✅	✅	✅	❌	❌	HA 日志同步。配合 ZK 保证 NameNode 元数据一致性。
Hadoop HA
NameNode	✅ (Active)	✅ (Standby)	❌	❌	❌	HDFS 核心。主备分离，Node 3 不部署 NN 以减轻负载。
ResourceManager	✅ (Active)	✅ (Standby)	❌	❌	❌	YARN 核心。主备分离，确保调度高可用。
数据存储与计算
DataNode	✅	✅	✅	✅	✅	HDFS 存储。5台全部署，利用所有磁盘空间，副本数设为 3。
NodeManager	✅	✅	✅	✅	✅	YARN 计算。5台全部署，充分利用 5台机器的 CPU 跑任务。
数据仓库 (Hive)
Hive Metastore	✅	✅	❌	❌	❌	元数据管理。部署在 Node 1, 2 实现双活，互为主备。
OLAP (Doris)
Doris FE	✅ (Leader)	✅ (Observer)	✅ (Observer)	❌	❌	Doris 前端。3节点部署，完美满足 FE 的高可用推荐架构。
Doris BE	❌	❌	✅	✅	✅	Doris 后端。3节点部署 (Node 3,4,5)，数据分片存储，查询性能极强。
调度与消息
DolphinScheduler	✅ (Master/API)	✅ (Master/API)	✅ (Alter)	✅ (Worker)	✅ (Worker)	任务调度。Master 在 Node 1，Worker 在 Node 4, 5 执行具体任务。
Kafka Controller	❌	❌	✅	✅	✅	消息队列。3节点部署 (Node 3,4,5)，保证数据高可靠不丢失。
Kafka Broker	❌	❌	✅	✅	✅	消息队列。3节点部署 (Node 3,4,5)，保证数据高可靠不丢失。
元数据库
MySQL	✅	❌	❌	❌	❌	元数据中心。独占 Node 1，存储 Hive/DS/Doris 的元数据。

启动顺序

所有 Zookeeper
所有 JournalNode
HDFS 的 NameNode 和 DataNode
Yarn 的 ResourceManager 和 NodeManager
MySQL
Hive、Spark、Flink
Kafka
Doris FE 和 Doris BE
DolphinScheduler

模板机

通用模板机

模板机需要配置好

静态 ip
主机名修改
hosts 与主机名映射正确
大数据专有用户创建
ssh 配置，以及配置本机免密登录，之后任何节点都基于模板机的密钥
采用大数据专有用户
生成密钥对 ssh-keygen -t rsa -b 4096 -m PEM -f ~/.ssh/id_rsa
公钥给自己本机 cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
给文件当前用户的读写权限 chmod 600 ~/.ssh/authorized_keys
测试是否能够 ssh 登录 ssh template
root 用户也需要进行当前项的配置，因为之后要进行分发环境变量等内容
JDK 环境配置
防火墙关闭（内网关闭即可）
sudo ufw disable
sudo systemctl stop ufw
关闭 swap 分区
临时关闭 sudo swapoff -a
永久关闭 sudo vim /etc/fstab 注释掉包含 swap 的那一行
free -h 中，swap 应该为 0
时间同步
sudo apt install -y chrony
sudo systemctl enable --now chrony
安装常用工具
sudo apt install -y vim net-tools curl wget sshpass rsync

将 xsync 和 xcall 脚本放到 /usr/local/bin 目录下，并且给执行权限

bash

#!/bin/bash

if [ $# -lt 1 ]; then
    echo "Error: Not enough arguments."
    echo "Usage: $0 <all | node1 [node2 ...]> <file/folder>"
    exit 1
fi

CLUSTER_NODES=("node1" "node2" "node3" "node4")

TARGET_NODES=()

# 获取最后一个参数作为文件路径
FILE_RELATIVE="${@: -1}"

# 将相对路径转换为绝对路径
FILE=$(realpath "$FILE_RELATIVE")

# 检查文件是否真的存在
if [ ! -e "$FILE" ]; then
    echo "Error: File or Directory '$FILE_RELATIVE' does not exist."
    exit 1
fi

# 提取节点列表
if [ "$1" == "all" ]; then
    TARGET_NODES=("${CLUSTER_NODES[@]}")
else
    # 循环提取除最后一个参数外的所有参数作为节点
    for ((i=1; i<=$#; i++)); do
        if [ $i -lt $# ]; then
            TARGET_NODES+=("${!i}")
        fi
    done
fi

echo "------------------------------------------------"
echo "Source File: $FILE"
echo "Target Nodes: ${TARGET_NODES[*]}"
echo "------------------------------------------------"

for node in "${TARGET_NODES[@]}"; do
    # 获取文件所在的父目录路径
    PARENT_DIR=$(dirname "$FILE")

    # 获取文件名
    FILE_NAME=$(basename "$FILE")

    echo ">> Syncing to $node ..."

    # 先在远程创建父目录 (防止目录不存在报错)，使用双引号包裹变量，防止路径中有空格
    ssh "$node" "mkdir -p \"$PARENT_DIR\""

    # 目标路径写成 user@host:path 的形式最稳妥
    rsync -av "$FILE" "$node:$PARENT_DIR"

    if [ $? -eq 0 ]; then
        echo ">> [$node] Success"
    else
        echo ">> [$node] Failed"
    fi
done

echo "------------------------------------------------"
echo "Done."

bash

 #!/bin/bash

 if [ $# -lt 2 ]; then
    echo "错误：参数不足"
    echo "用法: $0 <all | node1 [node2 ...]> <要执行的命令>"
    echo "示例: $0 all 'jps'"
    echo "示例: $0 node2 'ls /opt/module'"
    exit 1
 fi

 CLUSTER_NODES=("node1" "node2" "node3" "node4")

 TARGET_NODES=()

 if [ "$1" == "all" ]; then
    # 如果是 all，目标列表就是整个集群列表
    TARGET_NODES=("${CLUSTER_NODES[@]}")
    shift
 else
    # 如果不是 all，提取节点名和命令，最后一个参数是命令，前面的是节点
    args=("$@")
    count=${#args[@]}

    # 提取命令 (最后一个参数)
    CMD="${args[count-1]}"

    # 提取节点名 (从第 0 个到倒数第 2 个)
    for ((i=0; i<count-1; i++)); do
        TARGET_NODES+=("${args[i]}")
    done
 fi

 # 如果 CMD 变量为空（说明是走的 if all 分支）
 if [ -z "$CMD" ]; then
     # 此时 $@ 里剩下的就是命令部分，将其转为字符串
     CMD="$*"
 fi

 echo "开始在集群执行命令: $CMD"
 echo "目标节点: ${TARGET_NODES[*]}"

 for node in "${TARGET_NODES[@]}"; do
    echo "--------------------------------"
    echo "正在节点 [$node] 执行 [$CMD]"

    # 使用 ssh 执行命令，命令需要用引号包裹，防止本地 shell 提前解析，并且先加载环境变量再执行命令
    ssh "$node" "source /etc/profile; $CMD"

    if [ $? -eq 0 ]; then
        echo "[$node] 执行成功"
    else
        echo "[$node] 执行失败 (请检查命令或网络连接)"
    fi
 done

 echo "命令执行完毕"

通用用户

bash

sudo groupadd hadoop

-- 创建用户
-- -g 指定用户组为 hadoop
-- -r 代表创建的是系统账户（不能被普通用户 su 切换过去，除了 root 强制切换）
-- -s 指定 shell
sudo useradd -g hadoop -s /bin/bash hdfs
sudo useradd -r -g hadoop -s /bin/bash yarn
sudo useradd -r -g hadoop -s /bin/bash mapred

-- 给其他用户添加一个新的用户组
-- a 代表追加，不加此条会退出别的用户组
-- G 代表附加组
sudo usermod -aG hadoop causes

环境搭建

Zookeeper

本次 zookeeper 采用 3.8.6，虽然推荐为 3.8.4，但事实上小版本之间无太大差异

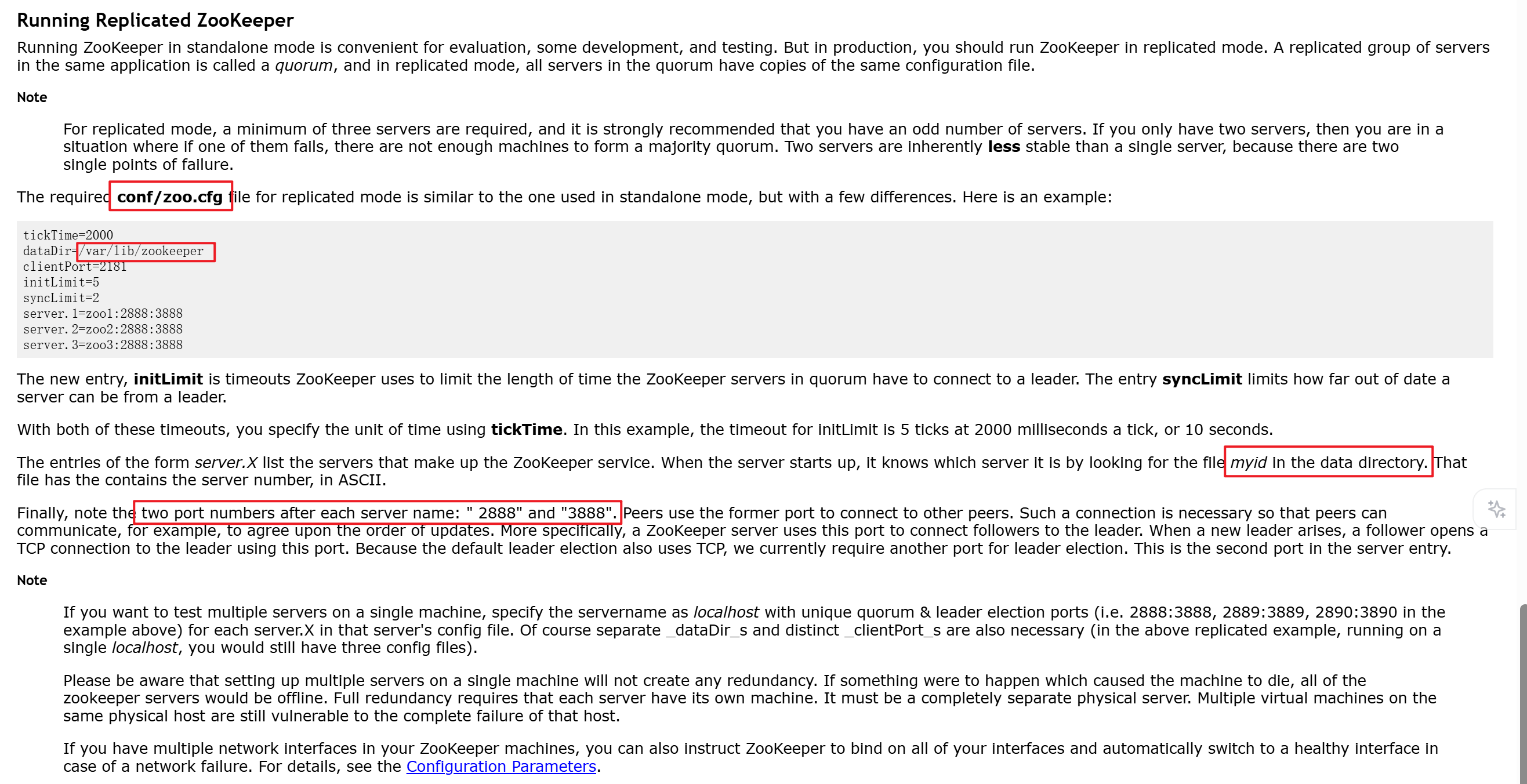

根据官方文档记载

zookeeper 需要在 conf/zoo.cfg 中配置 dataDir 作为数据存储，并且在此文件夹中配置一个 myid 的文件作为标识符，标识自己在集群模式下到底属于哪台服务器
这里根据之前的规划，选择 node1 node2 node3 节点作为 zookeeper 服务器
并且将 /opt/data/zookeeper 作为 dataDir
另外根据网络资料，myid 文件中的 id 只能在 1 - 255 之间
xcall node1 node2 node3 "cat /etc/hostname | awk '{print substr(\$1,5,6)}' > /opt/data/zookeeper/myid "
这个读取的是 node1 的数字然后放到 myid 中

zookeeper 的 conf/zoo.cfg 中需要配置好所有服务器的地址

当前四节点为

text

dataDir=/opt/data/zookeeper
server.1=node1:2888:3888
server.2=node2:2888:3888
server.3=node3:2888:3888
server.4=node4:2888:3888
server.5=node4:2888:3888

启动 zookeeper
xcall node1 node2 node3 "/opt/module/apache-zookeeper-3.8.6-bin/bin/zkServer.sh start"
xcall node1 node2 node3 "/opt/module/apache-zookeeper-3.8.6-bin/bin/zkServer.sh status"

Hadoop HA

为了保证高可用性和权限隔离效果，Hadoop 在进行部署之前必须要划分权限来进行调整

这其中包括 HDFS 的权限以及 Yarn 的权限，生产环境下不建议直接配置 root

hadoop 推荐为不同用户配置不同权限，可以拆分为 hdfs、yarn，也可以一个 hadoop 走天下

所以推荐是创建一个用户组为 hadoop，另外分别创建 hdfs 和 yarn 用户，hdfs 和 yarn 用户都属于用户组 hadoop

这样做的好处是，可以根据 linux 的权限系统划分为当前人和当前用户组和其他人的读写执行操作

下载 hadoop 3.3.6，解压缩到服务器上并且配置环境变量

给定 hadoop env 环境变量 $HADOOP_HOME/etc/hadoop/hadoop-env.sh

bash

export JAVA_HOME=/opt/module/jdk1.8.0_202
# Java 9+ 的一个启动参数，强制打开一个模块给外部访问，负责 WEB-UI 上看文件会报错，如果是使用 JDK8 那么就没问题了，注意 JDK8 不要用这个，会报错
# export HADOOP_OPTS="$HADOOP_OPTS --add-opens java.base/java.lang=ALL-UNNAMED --add-opens java.base/java.util=ALL-UNNAMED --add-opens java.base/java.nio=ALL-UNNAMED"

配置 hadoop 主要配置文件，配置 HA $HADOOP_HOME/etc/hadoop

创建 hadoop 存储文件的目录，这里设置为 /opt/data/hadoop/{hdfs,journal}

core-site.xml

这一步需要注意，一些教程会配置 hadoop.http.staticuser.user 为 root，这个代表使用超级管理员去查看 WebUI，随意删除，这个不允许

不配置 hadoop.http.staticuser.user 的话会使用匿名用户来进行查看，也就是无论谁来都不能修改

xml

<configuration>
    <!-- 定义 HDFS 的逻辑名称 -->
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://hadoop</value>
    </property>

    <!-- 数据目录 给定之前准备好的目录，生产需要指定到独立磁盘 -->
    <property>
        <name>hadoop.tmp.dir</name>
        <value>/opt/data/hadoop/hdfs</value>
    </property>

    <!-- ZooKeeper 集群地址 给定之前配置 zookeeper 的节点 用于 HA 协调 -->
    <property>
        <name>ha.zookeeper.quorum</name>
        <value>node1:2181,node2:2181,node3:2181</value>
    </property>

    <!-- 开启 hdfs 的代理身份 -->
    <property>
        <name>hadoop.proxyuser.hdfs.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.hdfs.groups</name>
        <value>*</value>
    </property>

    <!-- 开启回收站，保留 1 天 -->
    <property>
        <name>fs.trash.interval</name>
        <value>1440</value>
    </property>
</configuration>

hdfs-site.xml

这里注意，需要首先创建 hdfs 用户，给到密钥对，才能使用 dfs.ha.fencing.ssh.private-key-files

xml

<configuration>
   <!-- 副本数 -->
   <property>
      <name>dfs.replication</name>
      <value>3</value>
   </property>

   <!-- 定义 Nameservice ID (需与 core-site.xml 中的 fs.defaultFS 对应) -->
   <property>
      <name>dfs.nameservices</name>
      <value>hadoop</value>
   </property>

   <!-- 定义两个 NameNode 的别名 (nn1, nn2) -->
   <property>
      <name>dfs.ha.namenodes.hadoop</name>
      <value>nn1,nn2</value>
   </property>

   <!-- nn 的 RPC 地址 -->
   <property>
      <name>dfs.namenode.rpc-address.hadoop.nn1</name>
      <value>node1:8020</value>
   </property>
   <property>
      <name>dfs.namenode.rpc-address.hadoop.nn2</name>
      <value>node2:8020</value>
   </property>

   <!-- NameNode 的 Web UI 地址 -->
   <property>
      <name>dfs.namenode.http-address.hadoop.nn1</name>
      <value>node1:9870</value>
   </property>
   <property>
      <name>dfs.namenode.http-address.hadoop.nn2</name>
      <value>node2:9870</value>
   </property>

   <!-- 集群 NameNode 元数据在 JournalNode 存放位置 目录 hadoop 为集群 id -->
   <property>
      <name>dfs.namenode.shared.edits.dir</name>
      <value>qjournal://node1:8485;node2:8485;node3:8485/hadoop</value>
   </property>
   <!-- NameNode 元数据在 JournalNode 的物理磁盘存放位置，生产需要指定独立磁盘 -->
   <property>
      <name>dfs.journalnode.edits.dir</name>
      <value>/opt/data/hadoop/journal</value>
   </property>

   <!-- 配置自动故障转移 -->
   <property>
      <name>dfs.ha.automatic-failover.enabled</name>
      <value>true</value>
   </property>

   <!-- 客户端故障转移代理 -->
   <property>
      <name>dfs.client.failover.proxy.provider.hadoop</name>
      <value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
   </property>

   <!--
    使用 SSH 隔离防止 NameNode 脑裂
    shell 用于兜底（比如机器崩溃无法 ssh 过去的时候）
    注意 sshfence 和 shell 都需要新启动一行，用于表示为一个列表
    arping 需要提前安装 iputils-arping 并且位置可能不同，需要谨慎，另外网络可能不同，需要修改
    意思是 arping 进行流量转发，将 target_host 的流量全都转移到自己身上来，这样可以防止脑裂
   -->
   <property>
      <name>dfs.ha.fencing.methods</name>
      <value>
sshfence
shell(/usr/bin/arping -D -c 3 -A ${target_host})
      </value>
   </property>
   <property>
      <name>dfs.ha.fencing.ssh.private-key-files</name>
      <value>/home/hdfs/.ssh/id_rsa</value>
   </property>
</configuration>

yarn-site.xml

xml

<configuration>
    <!-- 开启 YARN HA -->
    <property>
        <name>yarn.resourcemanager.ha.enabled</name>
        <value>true</value>
    </property>

    <!-- 定义 RM 集群 ID -->
    <property>
        <name>yarn.resourcemanager.cluster-id</name>
        <value>yarn-cluster</value>
    </property>

    <!-- 定义 RM 节点 ID -->
    <property>
        <name>yarn.resourcemanager.ha.rm-ids</name>
        <value>rm1,rm2</value>
    </property>

    <!-- 指定 RM 地址 -->
    <property>
        <name>yarn.resourcemanager.hostname.rm1</name>
        <value>node1</value>
    </property>
    <property>
        <name>yarn.resourcemanager.hostname.rm2</name>
        <value>node2</value>
    </property>

    <!-- 为 rm1 指定 Web UI 地址 -->
    <property>
        <name>yarn.resourcemanager.webapp.address.rm1</name>
        <value>node1:8088</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.https.address.rm1</name>
        <value>node1:8090</value>
    </property>

    <!-- 为 rm2 指定 Web UI 地址 -->
    <property>
        <name>yarn.resourcemanager.webapp.https.address.rm2</name>
        <value>node2:8090</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.address.rm2</name>
        <value>node2:8088</value>
    </property>

    <!-- 指定 ZK 地址 -->
    <property>
        <name>yarn.resourcemanager.zk-address</name>
        <value>node1:2181,node2:2181,node3:2181</value>
    </property>

    <!--启用自动恢复-->
    <property>
        <name>yarn.resourcemanager.recovery.enabled</name>
        <value>true</value>
    </property>

    <!--指定 resourcemanager 的状态信息存储在zookeeper集群-->
    <property>
        <name>yarn.resourcemanager.store.class</name>
        <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
    </property>

    <!-- 环境白名单 -->
    <property>
        <name>yarn.nodemanager.env-whitelist</name>
        <value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_MAPRED_HOME,HADOOP_HOME,PATH,LANG,TZ,FLINK_HOME</value>
    </property>

    <!-- 辅助服务：mapreduce_shuffle -->
    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <property>
        <name>yarn.nodemanager.aux-services.mapreduce_shuffle.class</name>
        <value>org.apache.hadoop.mapred.ShuffleHandler</value>
    </property>

    <!-- 日志聚合存储 HDFS 路径 -->
    <property>
        <name>yarn.nodemanager.remote-app-log-dir</name>
        <value>/tmp/logs</value>
    </property>
</configuration>

mapred-site.xml

xml

<configuration>
    <!-- 指定 MapReduce 运行在 YARN 上 -->
    <property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>

    <!-- 开启 MapReduce 的历史服务器 -->
    <property>
        <name>mapreduce.jobhistory.address</name>
        <value>node1:10020</value>
    </property>

    <!-- 历史服务器 Web UI 地址 -->
    <property>
        <name>mapreduce.jobhistory.webapp.address</name>
        <value>node1:19888</value>
    </property>

    <!-- 启用 Shuffle 服务（YARN 需要这个来混洗 Map 输出的数据） -->
    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
</configuration>

启动集群
启动 zookeeper 集群 xcall node1 node2 node3 "/opt/module/apache-zookeeper-3.8.6-bin/bin/zkServer.sh start"
在 node1、node2、node3 上启动 JournalNode xcall node1 node2 node3 "$HADOOP_HOME/sbin/hadoop-daemon.sh start journalnode" 格式化向 JournalNode 写入元数据
node1 上格式化 NameNode: hdfs namenode -format 格式化会产生新的集群 ID，假如需要重新格式化一定要删除 data 和 logs 目录，格式化完成后查看存放数据的文件夹下是否有了 dfs 目录
启动主 NameNode node1: hadoop-daemon.sh start namenode
格式化从 NameNode node2: 将元数据同步 hdfs namenode -bootstrapStandby
启动从 NameNode node2: hadoop-daemon.sh start namenode
在其中一个 NameNode 中运行 hdfs zkfc -formatZK 来初始化
停止已经启动的 dfs stop-dfs.sh
全面启动 dfs start-dfs.sh
启动 yarn start-yarn.sh
验证认证
hdfs dfs -ls /
这个命令其实等同于先去寻找 zookeeper 谁是 active 节点，然后直接连上去执行

一键启停脚本 hadoop-ha-manage.sh

bash

#!/bin/bash

# ================= 配置区域 =================
# 主机名/ip
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# 角色分配
NN_NODES=("$NODE1" "$NODE2")               # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")      # JournalNode 节点（奇数个）
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")      # ZooKeeper 节点
WORKER_NODES=("$NODE4" "$NODE5")           # DataNode / NodeManager
HS_NODE="$NODE1"                           # MapReduce HistoryServer

# ⚠️ 重要：必须与 hdfs-site.xml 中 dfs.ha.namenodes.<nameservice> 配置一致
# 例如 nameservice 为 mycluster，则 nn1、nn2 的逻辑名称为 nn1、nn2
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hadoop 安装目录（通过环境变量获取）
if [ -z "$HADOOP_HOME" ]; then
    source /etc/profile 2>/dev/null
    HADOOP_HOME=$HADOOP_HOME
fi
if [ -z "$HADOOP_HOME" ]; then
    echo "错误: 未找到 HADOOP_HOME 环境变量！"
    exit 1
fi

# 去重函数（用于状态检查等）
unique_nodes() {
    printf "%s\n" "$@" | sort -u
}

# 颜色定义
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

# ================= 函数定义 =================
print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 远程执行命令（自动加载环境变量）
ssh_exec() {
    local node=$1
    local cmd=$2
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" \
        "source /etc/profile 2>/dev/null; export JAVA_HOME=${JAVA_HOME}; export PATH=\$JAVA_HOME/bin:\$PATH; $cmd"
}

# ---------- 启动 ----------
start_all() {
    print_msg "START" "========== 启动 Hadoop HA 集群 =========="

    # 1. ZooKeeper
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "zkServer.sh start"
    done
    sleep 3

    # 2. JournalNode
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon start journalnode"
    done
    sleep 2

    # 3. NameNode
    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon start namenode"
    done
    sleep 2

    # 4. ZKFC
    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon start zkfc"
    done
    sleep 2

    # 5. DataNode
    print_msg "WORKER" "启动 DataNode..."
    for node in "${WORKER_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon start datanode"
    done
    sleep 2

    # 6. ResourceManager（先于 NodeManager）
    print_msg "RM" "启动 ResourceManager..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    # 7. NodeManager
    print_msg "WORKER" "启动 NodeManager..."
    for node in "${WORKER_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2

    # 8. MapReduce HistoryServer
    print_msg "HS" "启动 HistoryServer..."
    ssh_exec "$HS_NODE" "$HADOOP_HOME/bin/mapred --daemon start historyserver"
    sleep 2

    print_msg "DONE" "所有启动命令已发送，请执行 '$0 status' 检查状态。"
}

# ---------- 停止 ----------
stop_all() {
    print_msg "STOP" "========== 关闭 Hadoop HA 集群 =========="

    # 1. ResourceManager
    print_msg "RM" "停止 ResourceManager..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    # 2. NodeManager
    print_msg "NM" "停止 NodeManager..."
    for node in "${WORKER_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done

    # 3. HistoryServer
    print_msg "HS" "停止 HistoryServer..."
    ssh_exec "$HS_NODE" "$HADOOP_HOME/bin/mapred --daemon stop historyserver"

    # 4. ZKFC（先于 NameNode 以避免误切换）
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    # 5. NameNode
    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    # 6. DataNode
    print_msg "DN" "停止 DataNode..."
    for node in "${WORKER_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    # 7. JournalNode
    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    # 8. ZooKeeper
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "zkServer.sh stop"
    done

    print_msg "DONE" "所有停止命令已发送。"
}

# ---------- 状态 ----------
check_status() {
    print_msg "STATUS" "========== 集群进程状态 =========="

    # 所有节点去重
    ALL_NODES=("${NN_NODES[@]}" "${JN_NODES[@]}" "${ZK_NODES[@]}" "${WORKER_NODES[@]}")
    mapfile -t UNIQUE_NODES < <(unique_nodes "${ALL_NODES[@]}")

    for node in "${UNIQUE_NODES[@]}"; do
        echo "----------------------------------------"
        print_msg "HOST" "$node"
        ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|QuorumPeerMain|ResourceManager|NodeManager|DFSZKFailoverController' || echo '无相关 Java 进程'"
    done
    echo "----------------------------------------"

    # HA 状态（需要正确的 ids）
    print_msg "HA" "NameNode HA 状态:"
    ssh_exec "${NN1_HOST}" "$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null" || \
        print_error "NN" "无法获取 ${NN1_HOST} 的状态"
    ssh_exec "${NN2_HOST}" "$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null" || \
        print_error "NN" "无法获取 ${NN2_HOST} 的状态"
}

# ================= 主程序 =================
case "$1" in
    start)   start_all     ;;
    stop)    stop_all      ;;
    status)  check_status  ;;
    restart) stop_all
             sleep 5
             start_all     ;;
    *)       echo "用法: $0 {start|stop|status|restart}"
             exit 1        ;;
esac

验证 HA 高可用
需要注意，namenode 之前首先要 ssh node 一次，因为配置中是需要使用 ssh 进去另外的 node kill 进程的
然后一定要安装 sudo apt-get install -y psmisc 里面包含了 Hadoop 的隔离机制依赖 Linux 的 fuser 或 killall
第一次 ssh 会确认握手，添加到自己的 know_hosts 中，但是控制台不能自己输入，最终日志会表示 ssh 失败
另外需要注意，id_rsa 是否能够有权限去读取，不要以其他用户去启动 hdfs，否则读取不到就会失败
另外发现一个问题，密钥对 hadoop 对于新的格式 BEGIN OPENSSH PRIVATE KEY 读取不了，只能用老的密钥对 BEGIN RSA PRIVATE KEY
所以密钥对生成应该使用 ssh-keygen -t rsa -b 4096 -m PEM -f ~/.ssh/id_rsa 命令，然后 ssh-copy-id -i ~/.ssh/id_rsa.pub node 到其他机器上
而且权限必须是 600，如果是其他的就会拒绝读取
首先进入网页可以查看 Overview 这一栏中，一个 node 应该展示 Active，另一个应该展示 Standby
然后进入到 active 的那个 node 中，Jps 查看 namenode 的进程，然后 kill 掉，等待 10-20s 查看是否自动切换
执行 mapreduce 验证 hadoop jar $HADOOP_HOME/share/hadoop/mapreduce/hadoop-mapreduce-examples-*.jar pi 2 2

Spark

下载 spark，直接去官网下载，虽然我们之前说的是版本对应 3.4.2，但其实能和 hadoop 版本对应（即 3.3 版本）对应即可
这里下载的是 3.5.8 版本

将 spark 解压到目录下，给出配置复制

$SPARK_HOME/conf/spark-env.sh

bash

# 指定 Hadoop 配置文件目录
export HADOOP_CONF_DIR=/opt/module/hadoop-3.3.6/etc/hadoop
export YARN_CONF_DIR=/opt/module/hadoop-3.3.6/etc/hadoop

# 指定 Java 路径
export JAVA_HOME=/opt/module/jdk1.8.0_202

# 指定 Driver 内存，防止默认值太小
export SPARK_DRIVER_MEMORY=2G

$SPARK_HOME/conf/spark-defaults.conf

conf

# 运行模式
spark.master yarn

# 历史服务器配置
# 让 Spark 把日志写到 HDFS 上，这样你可以在 Web UI 看到历史任务
spark.eventLog.enabled true
spark.eventLog.dir hdfs:///bigdata/spark/logs

# kryo 序列化
spark.serializer org.apache.spark.serializer.KryoSerializer

# 内存管理，默认值为配置文件内容，命令行与代码中指定的优先级更高
spark.driver.memory 2g
spark.executor.memory 1g

# hadoop 配置位置
spark.yarn.dist.confDir /opt/module/hadoop-3.3.6/etc/hadoop

# spark libs 包位置
spark.yarn.jars hdfs:///bigdata/spark/libs/*

配置 log4j2.properties 可以将日志级别改为 rootLogger.level = ERROR 但是也可以为 INFO WARN，但是生产建议保留 INFO 用来排查问题

HDFS 文件目录准备

bash

hdfs dfs -chown hdfs:hadoop /tmp
hdfs dfs -chmod 755 /tmp
hdfs dfs -chmod -R 755 /tmp
hdfs dfs -chown -R hdfs:hadoop /tmp
hdfs dfs -mkdir -p /bigdata/spark/logs
hdfs dfs -chown -R hdfs:hadoop /bigdata
hdfs dfs -chmod -R 755 /bigdata
hdfs dfs -mkdir -p /bigdata/spark/libs
hdfs dfs -put $SPARK_HOME/jars/* /bigdata/spark/libs

执行命令运行

bash

spark-submit \
    --master yarn \
    --deploy-mode cluster \
    --class org.apache.spark.examples.SparkPi \
    $SPARK_HOME/examples/jars/spark-examples_2.12-3.5.8.jar \
100

Hive

MySQL

要安装 Hive，首先需要安装关系型数据库做元数据

更新 sudo apt update
安装 MySQL 服务端 sudo apt install -y mysql-server 默认安装为最新版
检查状态 sudo systemctl status mysql

安全设置

sudo mysql -u root

修改 root 用户的认证方式为密码认证，并设置密码

sql

-- 修改 root 用户为密码认证，并给到密码
ALTER USER 'root'@'localhost' IDENTIFIED WITH mysql_native_password BY 'Ab@123';
FLUSH PRIVILEGES;

创建 hive 专用用户

sql

-- 创建 Hive 元数据库
CREATE DATABASE hive_metastore CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci;

-- 创建 Hive 专用用户并授权
-- 这里允许所有节点(%)连接，这样配置最方便
CREATE USER 'hive'@'%' IDENTIFIED WITH mysql_native_password BY 'Ab@123';

-- 授予该用户对 hive_metastore 库的所有权限
GRANT ALL PRIVILEGES ON hive_metastore.* TO 'hive'@'%';

--  刷新权限
FLUSH PRIVILEGES;
EXIT;

配置远程访问
配置文件 /etc/mysql/mysql.conf.d/mysqld.cnf
注释掉绑定地址，令其监听所有 IP: # bind-address = 127.0.0.1
重启 MYSQL 服务 sudo systemctl restart mysql
配置测试链接

Hive Metastore && Hive Server 2

下载 hive
解压缩，配置环境变量
将 MySQL 驱动包复制到 $HIVE_HOME/lib 路径下，版本无所谓，MySQL 驱动包在高版本兼容低版本

给 hive 准备文件

bash

hdfs dfs -mkdir -p /bigdata/hive/warehouse
hdfs dfs -mkdir -p /bigdata/hive/scratchdir
hdfs dfs -mkdir -p /bigdata/hive/resources

hdfs dfs -chown -R hdfs:hadoop /bigdata
hdfs dfs -chown -R hive:hadoop /bigdata/hive
hdfs dfs -chmod -R 755 /bigdata

sudo mkdir -p /tmp/hive/resources
sudo mkdir -p /tmp/hive/scratchdir
sudo chown -R hdfs:hadoop /tmp/hive

准备新用户 hive:hadoop，此时不用，之后准备 Kerberos 认证的时候使用

bash

xcall all "sudo useradd -r -g hadoop -s /bin/bash hive"

hive-site.xml 设置

xml

<configuration>
    <!-- 基础配置：HDFS 仓库目录 -->
    <property>
        <name>hive.metastore.warehouse.dir</name>
        <value>/bigdata/hive/warehouse</value>
    </property>

    <!-- 元数据库连接 (所有节点连同一个 MySQL) -->
    <property>
        <name>javax.jdo.option.ConnectionURL</name>
        <value>
            jdbc:mysql://node1:3306/hive_metastore?createDatabaseIfNotExist=true&amp;useSSL=false&amp;serverTimezone=Asia/Shanghai
        </value>
    </property>
    <property>
        <name>javax.jdo.option.ConnectionDriverName</name>
        <value>com.mysql.cj.jdbc.Driver</value>
    </property>
    <property>
        <name>javax.jdo.option.ConnectionUserName</name>
        <value>hive</value>
    </property>
    <property>
        <name>javax.jdo.option.ConnectionPassword</name>
        <value>Ab@123</value>
    </property>

    <!-- Metastore HA 配置 -->
    <!-- Hive Metastore 服务应该监听哪个地址 -->
    <property>
        <name>hive.metastore.uris</name>
        <value>thrift://node1:9083,thrift://node2:9083</value>
    </property>

    <!-- HiveServer2 HA 配置 (基于 ZooKeeper) -->
    <!-- HiveServer2 监听的主机地址 -->
    <property>
        <name>hive.server2.thrift.bind.host</name>
        <value>0.0.0.0</value>
    </property>
    <!-- HiveServer2 监听的端口 -->
    <property>
        <name>hive.server2.thrift.port</name>
        <value>10000</value>
    </property>
    <!-- 开启 HS2 的 ZooKeeper 注册 -->
    <property>
        <name>hive.server2.support.dynamic.service.discovery</name>
        <value>true</value>
    </property>
    <!-- 配置 ZooKeeper 命名空间 -->
    <!-- 所有 HS2 实例会在 ZK 的这个目录下注册临时节点 -->
    <property>
        <name>hive.zookeeper.namespace</name>
        <value>hiveserver2</value>
    </property>
    <!-- 指定 ZooKeeper 集群 -->
    <property>
        <name>hive.zookeeper.quorum</name>
        <value>node1:2181,node2:2181,node3:2181</value>
    </property>
    <!-- ZooKeeper 命名空间 -->
    <property>
        <name>hive.zookeeper.client.port</name>
        <value>2181</value>
    </property>

    <!-- Java 虚拟机临时目录，本地磁盘 -->
    <property>
        <name>java.io.tmpdir</name>
        <value>/tmp/hive</value>
    </property>
    <!-- Hive 临时使用的 Hadoop 地址，尝试使用过 hdfs，但是它直接读取了本地文件目录，很离谱，所以直接采用本地系统得了 -->
    <property>
        <name>hive.exec.scratchdir</name>
        <value>/tmp/hive/scratchdir</value>
    </property>
    <!-- Hive 存放资源文件的 Hadoop 地址 -->
    <property>
        <name>hive.downloaded.resources.dir</name>
        <value>/tmp/hive/resources</value>
    </property>

    <!-- 认证方式：待添加 KERBEROS 认证 -->
    <property>
        <name>hive.server2.authentication</name>
        <value>NONE</value>
    </property>
    <!-- 直接禁用掉 hive 本身安全认证，之后直接上 kerberos -->
    <property>
        <name>hive.security.authorization.enabled</name>
        <value>false</value>
    </property>
    <property>
        <name>hive.security.authorization.createtable.owner.grants</name>
        <value>ALL</value>
    </property>

    <!-- 开启并发支持（多会话），查询时以用户身份执行 -->
    <property>
        <name>hive.server2.enable.doAs</name>
        <value>true</value>
    </property>
    <!-- 开启多线程模式（提高并发性能） -->
    <property>
        <name>hive.server2.thrift.max.worker.threads</name>
        <value>500</value>
    </property>
    <!-- 直接关掉 hive 的轮询功能，因为 HS2 启动时会强制初始化 NotificationEventPoll，如果初始化失败，HS2 就直接报错退出，这个未来版本的功能直接禁用也没问题，HA 不受影响-->
    <property>
        <name>hive.metastore.event.db.notification.api.auth</name>
        <value>false</value>
    </property>
    <property>
        <name>hive.metastore.notifications</name>
        <value>false</value>
    </property>

    <!-- 执行引擎改为 spark -->
    <property>
        <name>hive.execution.engine</name>
        <value>spark</value>
    </property>
    <property>
        <name>spark.home</name>
        <value>/opt/module/spark-3.5.8-bin-hadoop3</value>
    </property>
    <property>
        <name>spark.master</name>
        <value>yarn</value>
    </property>
    <property>
        <name>spark.submit.deployMode</name>
        <value>client</value>
    </property>
    <property>
        <name>spark.yarn.jars</name>
        <value>hdfs://hadoop/bigdata/spark/lib/*</value>
    </property>
    <property>
        <name>spark.executor.memory</name>
        <value>2g</value>
    </property>
    <property>
        <name>spark.executor.cores</name>
        <value>2</value>
    </property>

    <!-- 打印表头 -->
    <property>
        <name>hive.cli.print.header</name>
        <value>true</value>
    </property>
    <!-- 打印库名称 -->
    <property>
        <name>hive.cli.print.current.db</name>
        <value>true</value>
    </property>

</configuration>

hive 到 hadoop 的软链接

hive 直接复用 hadoop 的配置文件即可

bash

cd $HIVE_HOME/conf
ln -s $HADOOP_HOME/etc/hadoop/core-site.xml $HIVE_HOME/conf/core-site.xml
ln -s $HADOOP_HOME/etc/hadoop/hdfs-site.xml $HIVE_HOME/conf/hdfs-site.xml
ln -s $HADOOP_HOME/etc/hadoop/yarn-site.xml $HIVE_HOME/conf/yarn-site.xml

配置 hive-env.sh

bash

export HADOOP_HOME=/opt/module/hadoop-3.3.6
export HIVE_CONF_DIR=/opt/module/apache-hive-3.1.3-bin/conf
export HIVE_AUX_JARS_PATH=/opt/module/apache-hive-3.1.3-bin/lib

hive 与 hadoop 的包冲突问题
hadoop 和 hive 以来的 guava 包版本不同，直接删掉 hadoop 用 hive 的
bash
```
rm $HIVE_HOME/lib/guava-*.jar
cp $HADOOP_HOME/share/hadoop/common/lib/guava-*.jar $HIVE_HOME/lib/
```

分发，并且给 hive 文件夹授权

bash

xsync all apache-hive-3.1.3-bin
sudo xcall all "chown hdfs:hadoop -R /opt/module/apache-hive-3.1.3-bin/"
sudo xcall all "sudo chmod 755 -R /opt/module/apache-hive-3.1.3-bin/"

初始化 hive，注意，只需要在一个节点（管理节点）上执行当前命令 schematool -dbType mysql -initSchema 如果是升级则使用 schematool -dbType mysql -upgradeSchema

新的群启集群脚本

bash

#!/bin/bash

# ======================== 集群配置（按实际情况修改） ========================
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# Hadoop 角色
NN_NODES=("$NODE1" "$NODE2")            # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")   # JournalNode 节点
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")   # ZooKeeper 节点
DN_NODES=("$NODE4" "$NODE5")            # DataNode 节点
NM_NODES=("$NODE4" "$NODE5")            # NodeManager 节点
RM_NODES=("$NODE1" "$NODE2")            # ResourceManager 节点
HS_NODE="$NODE1"                        # MapReduce JobHistoryServer

# NameNode 逻辑名称（必须与 hdfs-site.xml 一致）
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hive 角色
METASTORE_NODES=("$NODE1" "$NODE2")
HS2_NODES=("$NODE1" "$NODE2")

# 颜色
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 执行（source /etc/profile 获取环境变量）
ssh_exec() {
    local node=$1; shift
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" "
        source /etc/profile 2>/dev/null
        $*
    "
}

# ======================== ZooKeeper ========================
start_zookeeper() {
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh start
            else
                zkServer.sh start
            fi
        "
    done
    sleep 2
    print_msg "ZK" "ZooKeeper 启动完成"
}

stop_zookeeper() {
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh stop
            else
                zkServer.sh stop
            fi
        "
    done
    print_msg "ZK" "ZooKeeper 已停止"
}

# ======================== HDFS ========================
start_hdfs() {
    print_msg "HDFS" "启动 HDFS 组件..."
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start journalnode"
    done
    sleep 2

    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start namenode"
    done
    sleep 2

    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start zkfc"
    done
    sleep 2

    print_msg "DN" "启动 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start datanode"
    done
    sleep 2

    print_msg "HDFS" "HDFS 组件启动完成"
}

stop_hdfs() {
    print_msg "HDFS" "停止 HDFS 组件..."
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    print_msg "DN" "停止 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    print_msg "HDFS" "HDFS 组件已停止"
}

# ======================== YARN ========================
start_yarn() {
    print_msg "YARN" "启动 YARN 组件..."
    print_msg "RM" "启动 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    print_msg "NM" "启动 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2
    print_msg "YARN" "YARN 组件启动完成"
}

stop_yarn() {
    print_msg "YARN" "停止 YARN 组件..."
    print_msg "RM" "停止 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    print_msg "NM" "停止 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done
    print_msg "YARN" "YARN 组件已停止"
}

# ======================== MapReduce HistoryServer ========================
start_historyserver() {
    print_msg "HS" "启动 HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon start historyserver"
    print_msg "HS" "HistoryServer 启动完成"
}

stop_historyserver() {
    print_msg "HS" "停止 HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon stop historyserver"
    print_msg "HS" "HistoryServer 已停止"
}

# ======================== Hive ========================
start_metastore() {
    print_msg "METASTORE" "启动 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "nohup \$HIVE_HOME/bin/hive --service metastore >/dev/null 2>&1 &"
    done
    sleep 4
    print_msg "METASTORE" "Metastore 启动完成"
}

stop_metastore() {
    print_msg "METASTORE" "停止 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hadoop.hive.metastore.HiveMetaStore'"
    done
    print_msg "METASTORE" "Metastore 已停止"
}

start_hiveserver2() {
    print_msg "HS2" "启动 HiveServer2..."
    for node in "${HS2_NODES[@]}"; do
        ssh_exec "$node" "nohup \$HIVE_HOME/bin/hive --service hiveserver2 >/dev/null 2>&1 &"
    done
    sleep 4
    print_msg "HS2" "HiveServer2 启动完成"
}

stop_hiveserver2() {
    print_msg "HS2" "停止 HiveServer2..."
    for node in "${HS2_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hive.service.server.HiveServer2'"
    done
    print_msg "HS2" "HiveServer2 已停止"
}

# ======================== 全局启停 ========================
start_all() {
    start_zookeeper
    start_hdfs
    start_yarn
    start_historyserver
    start_metastore
    start_hiveserver2
    print_msg "ALL" "全部服务已启动"
}

stop_all() {
    stop_hiveserver2
    stop_metastore
    stop_historyserver
    stop_yarn
    stop_hdfs
    stop_zookeeper
    print_msg "ALL" "全部服务已停止"
}

# ======================== 状态检查（按节点展示，无重复）======================
check_status() {
    echo -e "${GREEN}==================== 集群状态 ====================${NC}"

    # --- ZooKeeper ---
    print_msg "ZK" "ZooKeeper:"
    echo -e "${ZK_NODES[@]}"
    for node in "${ZK_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep QuorumPeerMain")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HDFS（去重节点，一次列出该节点所有HDFS进程）---
    print_msg "HDFS" "HDFS 进程:"
    # 生成去重节点列表
    all_hdfs_nodes=($(printf "%s\n" "${NN_NODES[@]}" "${JN_NODES[@]}" "${DN_NODES[@]}" | sort -u))
    echo -e "${all_hdfs_nodes[@]}"
    for node in "${all_hdfs_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|DFSZKFailoverController'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 HDFS 进程"
        fi
    done

    # HA 状态
    print_msg "HA" "NameNode HA 状态:"
    nn1_state=$(ssh_exec "${NN1_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null")
    nn2_state=$(ssh_exec "${NN2_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null")
    if [ "$nn1_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${GREEN}active${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${YELLOW}standby${NC}"
    elif [ "$nn2_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${YELLOW}standby${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${GREEN}active${NC}"
    else
        echo -e "  ${RED}无法获取 HA 状态（集群可能未初始化）${NC}"
    fi

    # --- YARN（去重节点，一次列出该节点所有YARN进程）---
    print_msg "YARN" "YARN 进程:"
    all_yarn_nodes=($(printf "%s\n" "${RM_NODES[@]}" "${NM_NODES[@]}" | sort -u))
    echo -e "${all_yarn_nodes[@]}"
    for node in "${all_yarn_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'ResourceManager|NodeManager'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 YARN 进程"
        fi
    done

    # --- MapReduce HistoryServer ---
    print_msg "HS" "MapReduce HistoryServer:"
    out=$(ssh_exec "$HS_NODE" "jps 2>/dev/null | grep JobHistoryServer")
    if [ -n "$out" ]; then
        echo -e "  $HS_NODE : ${GREEN}$out${NC}"
    else
        echo -e "  $HS_NODE : ${RED}未运行${NC}"
    fi

    # --- Hive Metastore（ps 检查）---
    print_msg "META" "Hive Metastore:"
    echo -e "${METASTORE_NODES[@]}"
    for node in "${METASTORE_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hadoop.hive.metastore.HiveMetaStore'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HiveServer2（ps 检查）---
    print_msg "HS2" "HiveServer2:"
    echo -e "${HS2_NODES[@]}"
    for node in "${HS2_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hive.service.server.HiveServer2'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    echo -e "${GREEN}===================================================${NC}"
}

# ======================== 命令入口 ========================
case "$1" in
    start-zookeeper)    start_zookeeper    ;;
    stop-zookeeper)     stop_zookeeper     ;;
    start-hdfs)         start_hdfs         ;;
    stop-hdfs)          stop_hdfs          ;;
    start-yarn)         start_yarn         ;;
    stop-yarn)          stop_yarn          ;;
    start-historyserver) start_historyserver ;;
    stop-historyserver)  stop_historyserver  ;;
    start-metastore)    start_metastore    ;;
    stop-metastore)     stop_metastore     ;;
    start-hiveserver2)  start_hiveserver2  ;;
    stop-hiveserver2)   stop_hiveserver2   ;;
    start-all)          start_all          ;;
    stop-all)           stop_all           ;;
    restart-all)        stop_all; sleep 3; start_all ;;
    status)             check_status       ;;
    *)
        echo "用法: $0 <命令>"
        echo "  分组件启停:"
        echo "    start-zookeeper | stop-zookeeper"
        echo "    start-hdfs | stop-hdfs"
        echo "    start-yarn | stop-yarn"
        echo "    start-historyserver | stop-historyserver"
        echo "    start-metastore | stop-metastore"
        echo "    start-hiveserver2 | stop-hiveserver2"
        echo "  全局管理:"
        echo "    start-all | stop-all | restart-all"
        echo "    status"
        exit 1
        ;;
esac

完成后，测试能否链接 beeline beeline -u "jdbc:hive2://node1:2181,node2:2181,node3:2181/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2" -n hdfs

如果成功，那么需要解决另一个问题，即在 datagrip 外界链接时的高可用

因为 datagrip 等无法识别 zookeeper 串，所以需要在服务器增加流量控制

bash

sudo apt update
sudo apt install -y haproxy
sudo cp /etc/haproxy/haproxy.cfg /etc/haproxy/haproxy.cfg.bak

bash

sudo tee /etc/haproxy/haproxy.cfg << 'EOF'
global
    log /dev/log local0
    maxconn 4000

defaults
    log global
    mode tcp
    timeout connect 5s
    timeout client 30s
    timeout server 30s

frontend hive_front
    bind *:10001
    default_backend hive_back

backend hive_back
    balance roundrobin
    server node1 192.168.100.131:10000 check
    server node2 192.168.100.132:10000 check
EOF

bash

sudo systemctl enable haproxy
sudo systemctl restart haproxy
sudo netstat -tlnp | grep 10001

在 datagrip 中使用连接串 jdbc:hive2://192.168.100.131:10001/default;user=hdfs

使用这种方式之后，插入暂时不可用，因为还没做完

另外，namenode 的 webui 也能用这种方式

bash

# NameNode Web UI 统一入口
frontend namenode_web
    bind *:9871
    default_backend nn_web_servers

backend nn_web_servers
    balance roundrobin
    server node1 192.168.100.131:9870 check
    server node2 192.168.100.132:9870 check

完成后重启 sudo systemctl restart haproxy

Spark On Hive

Hive On Spark 和 Spark On Hive 是两套完全不同的方案

在 Hive On Spark 中，hive 是入口，spark 只是执行引擎，使用的方言是 HQL，编程入口是 beeline，而且只能跑 SQL

但是 Spark On Hive 来说，hive 只是它的元数据入口，执行的是 Spark SQL，入口包括 spark-sql、spark-shell、pyspark、Scala/Java API，可以混合 SQL + DataFrame + MLlib + Streaming

在 Spark On Hive 中，根本用不到 hiveserver2，直接使用 spark thrift server

修改 $SPARK_HOME/conf/spark-defaults.conf，替换为下面配置

bash

# spark.eventLog.dir               hdfs://namenode:8021/directory
spark.serializer                 org.apache.spark.serializer.KryoSerializer

# 内存（Thrift Server 场景建议调大）
# 动态内存分配
spark.dynamicAllocation.enabled              true

# 必须有 External Shuffle Service（让 Executor 退出时不丢数据）
spark.shuffle.service.enabled                true

# 设置 Executor 数量的上下边界
spark.dynamicAllocation.minExecutors         1
spark.dynamicAllocation.maxExecutors         10

# 闲置多久后回收 Executor
spark.dynamicAllocation.executorIdleTimeout         60s

# 有多少任务积压时申请新 Executor
spark.dynamicAllocation.schedulerBacklogTimeout     1s

# Hadoop 配置位置
spark.yarn.dist.confDir          /opt/module/hadoop-3.3.6/etc/hadoop

# Spark 与 Hive 集成
spark.sql.catalogImplementation  hive

# SQL 自适应执行（可根据数据量自动优化，动态合并小分区、切换 JOIN 策略、优化倾斜 JOIN）
spark.sql.adaptive.enabled               true
spark.sql.adaptive.coalescePartitions.enabled  true

# 使用钨丝计划提升计算效率，绕过 JVM 低效机制，直接操纵内存
spark.sql.tungsten.enabled               true

# 关闭推测执行避免重复计算，测试资源紧张关闭，若任务跑的特别慢，spark 会在另一个节点再启动一个完全相同副本跑
spark.speculation                false

# 并行度设置（根据集群总核心数调整，公式：集群总核数 * 2~3）
spark.default.parallelism         8
spark.sql.shuffle.partitions      8

做 hive-site.xml 与 spark 的软连接 ln -sf $HIVE_HOME/conf/hive-site.xml $SPARK_HOME/conf/hive-site.xml 至于 hive-site 的配置不需要做修改

新的集群脚本，删除了 hiveserver2 增加了 spark 组件

bash

#!/bin/bash

# ======================== 集群配置（按实际情况修改） ========================
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# Hadoop 角色
NN_NODES=("$NODE1" "$NODE2")            # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")   # JournalNode 节点
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")   # ZooKeeper 节点
DN_NODES=("$NODE4" "$NODE5")            # DataNode 节点
NM_NODES=("$NODE4" "$NODE5")            # NodeManager 节点
RM_NODES=("$NODE1" "$NODE2")            # ResourceManager 节点
HS_NODE="$NODE1"                        # MapReduce JobHistoryServer 节点

# Spark 角色
SPARK_MASTER_NODE="$NODE1"              # Spark Master 节点（单点，可按需扩展）
SPARK_WORKER_NODES=("$NODE4" "$NODE5") # Spark Worker 节点
SPARK_THRIFT_SERVER_NODES=("$NODE1" "$NODE2") # Spark Thrift Server 节点

# NameNode 逻辑名称（必须与 hdfs-site.xml 一致）
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hive 角色
METASTORE_NODES=("$NODE1" "$NODE2")

# 颜色
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 执行（source /etc/profile 获取环境变量）
ssh_exec() {
    local node=$1; shift
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" "
        source /etc/profile 2>/dev/null
        $*
    "
}

# ======================== ZooKeeper ========================
start_zookeeper() {
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh start
            else
                zkServer.sh start
            fi
        "
    done
    sleep 2
    print_msg "ZK" "ZooKeeper 启动完成"
}

stop_zookeeper() {
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh stop
            else
                zkServer.sh stop
            fi
        "
    done
    print_msg "ZK" "ZooKeeper 已停止"
}

# ======================== HDFS ========================
start_hdfs() {
    print_msg "HDFS" "启动 HDFS 组件..."
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start journalnode"
    done
    sleep 2

    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start namenode"
    done
    sleep 2

    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start zkfc"
    done
    sleep 2

    print_msg "DN" "启动 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start datanode"
    done
    sleep 2

    print_msg "HDFS" "HDFS 组件启动完成"
}

stop_hdfs() {
    print_msg "HDFS" "停止 HDFS 组件..."
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    print_msg "DN" "停止 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    print_msg "HDFS" "HDFS 组件已停止"
}

# ======================== YARN ========================
start_yarn() {
    print_msg "YARN" "启动 YARN 组件..."
    print_msg "RM" "启动 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    print_msg "NM" "启动 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2
    print_msg "YARN" "YARN 组件启动完成"
}

stop_yarn() {
    print_msg "YARN" "停止 YARN 组件..."
    print_msg "RM" "停止 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    print_msg "NM" "停止 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done
    print_msg "YARN" "YARN 组件已停止"
}

# ======================== MapReduce HistoryServer ========================
start_historyserver() {
    print_msg "HS" "启动 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon start historyserver"
    print_msg "HS" "HistoryServer 启动完成"
}

stop_historyserver() {
    print_msg "HS" "停止 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon stop historyserver"
    print_msg "HS" "HistoryServer 已停止"
}

# ======================== Hive Metastore ========================
start_metastore() {
    print_msg "METASTORE" "启动 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "nohup \$HIVE_HOME/bin/hive --service metastore >/dev/null 2>&1 &"
    done
    sleep 4
    print_msg "METASTORE" "Metastore 启动完成"
}

stop_metastore() {
    print_msg "METASTORE" "停止 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hadoop.hive.metastore.HiveMetaStore'"
    done
    print_msg "METASTORE" "Metastore 已停止"
}

# ======================== Spark ========================
start_spark() {
    print_msg "SPARK" "启动 Spark 组件..."
    # 这里假设你的 Spark 以 Standalone 或 YARN 方式运行 Worker
    # 如果不需要单独启动 Worker（依赖 YARN），可以注释掉
    # 启动 Spark Master
    # ssh_exec "$SPARK_MASTER_NODE" "\$SPARK_HOME/sbin/start-master.sh"
    # 启动 Spark Workers
    # for node in "${SPARK_WORKER_NODES[@]}"; do
    #     ssh_exec "$node" "\$SPARK_HOME/sbin/start-worker.sh spark://$SPARK_MASTER_NODE:7077"
    # done
    print_msg "SPARK" "Spark 组件启动完成（若需独立 Worker 请取消注释）"
}

stop_spark() {
    print_msg "SPARK" "停止 Spark 组件..."
    # ssh_exec "$SPARK_MASTER_NODE" "\$SPARK_HOME/sbin/stop-master.sh"
    # for node in "${SPARK_WORKER_NODES[@]}"; do
    #     ssh_exec "$node" "\$SPARK_HOME/sbin/stop-worker.sh"
    # done
    print_msg "SPARK" "Spark 组件已停止"
}

start_spark_thrift_server() {
    print_msg "SPARK THRIFT" "启动 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "
            nohup \$SPARK_HOME/sbin/start-thriftserver.sh \
                --master yarn \
                --deploy-mode client \
                --hiveconf hive.server2.thrift.port=10000 \
                --hiveconf hive.server2.thrift.bind.host=0.0.0.0 >/dev/null 2>&1 &
        "
        sleep 3
    done
    sleep 5
    print_msg "SPARK THRIFT" "Spark Thrift Server 启动完成"
}

stop_spark_thrift_server() {
    print_msg "SPARK THRIFT" "停止 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.spark.sql.hive.thriftserver.HiveThriftServer2'"
    done
    print_msg "SPARK THRIFT" "Spark Thrift Server 已停止"
}

# ======================== 全局启停 ========================
start_all() {
    start_zookeeper
    start_hdfs
    start_yarn
    start_historyserver
    start_metastore
    start_spark
    start_spark_thrift_server
    print_msg "ALL" "全部服务已启动"
}

stop_all() {
    stop_spark_thrift_server
    stop_spark
    stop_metastore
    stop_historyserver
    stop_yarn
    stop_hdfs
    stop_zookeeper
    print_msg "ALL" "全部服务已停止"
}

# ======================== 状态检查 ========================
check_status() {
    echo -e "${GREEN}==================== 集群状态 ====================${NC}"

    # --- ZooKeeper ---
    print_msg "ZK" "ZooKeeper:"
    for node in "${ZK_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep QuorumPeerMain")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HDFS ---
    print_msg "HDFS" "HDFS 进程:"
    all_hdfs_nodes=($(printf "%s\n" "${NN_NODES[@]}" "${JN_NODES[@]}" "${DN_NODES[@]}" | sort -u))
    for node in "${all_hdfs_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|DFSZKFailoverController'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 HDFS 进程"
        fi
    done

    # HA 状态
    print_msg "HA" "NameNode HA 状态:"
    nn1_state=$(ssh_exec "${NN1_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null")
    nn2_state=$(ssh_exec "${NN2_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null")
    if [ "$nn1_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${GREEN}active${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${YELLOW}standby${NC}"
    elif [ "$nn2_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${YELLOW}standby${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${GREEN}active${NC}"
    else
        echo -e "  ${RED}无法获取 HA 状态（集群可能未初始化）${NC}"
    fi

    # --- YARN ---
    print_msg "YARN" "YARN 进程:"
    all_yarn_nodes=($(printf "%s\n" "${RM_NODES[@]}" "${NM_NODES[@]}" | sort -u))
    for node in "${all_yarn_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'ResourceManager|NodeManager'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 YARN 进程"
        fi
    done

    # --- MapReduce HistoryServer ---
    print_msg "HS" "MapReduce HistoryServer:"
    out=$(ssh_exec "$HS_NODE" "jps 2>/dev/null | grep JobHistoryServer")
    if [ -n "$out" ]; then
        echo -e "  $HS_NODE : ${GREEN}$out${NC}"
    else
        echo -e "  $HS_NODE : ${RED}未运行${NC}"
    fi

    # --- Hive Metastore ---
    print_msg "META" "Hive Metastore:"
    for node in "${METASTORE_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hadoop.hive.metastore.HiveMetaStore'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Spark Thrift Server ---
    print_msg "SPARK THRIFT" "Spark Thrift Server:"
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep SparkSubmit")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

}

# ======================== 命令入口 ========================
case "$1" in
    start-zookeeper)    start_zookeeper    ;;
    stop-zookeeper)     stop_zookeeper     ;;
    start-hdfs)         start_hdfs         ;;
    stop-hdfs)          stop_hdfs          ;;
    start-yarn)         start_yarn         ;;
    stop-yarn)          stop_yarn          ;;
    start-historyserver) start_historyserver ;;
    stop-historyserver)  stop_historyserver  ;;
    start-metastore)    start_metastore    ;;
    stop-metastore)     stop_metastore     ;;
    start-spark)        start_spark        ;;   # 已保留，但默认不启动独立 Worker
    stop-spark)         stop_spark         ;;
    start-spark-thrift) start_spark_thrift_server ;;
    stop-spark-thrift)  stop_spark_thrift_server  ;;
    start-all)          start_all          ;;
    stop-all)           stop_all           ;;
    restart-all)        stop_all; sleep 3; start_all ;;
    status)             check_status       ;;
    *)
        echo "用法: $0 <命令>"
        echo "  分组件启停:"
        echo "    start-zookeeper | stop-zookeeper"
        echo "    start-hdfs | stop-hdfs"
        echo "    start-yarn | stop-yarn"
        echo "    start-historyserver | stop-historyserver"
        echo "    start-metastore | stop-metastore"
        echo "    start-spark | stop-spark"
        echo "    start-spark-thrift | stop-spark-thrift"
        echo "  全局管理:"
        echo "    start-all | stop-all | restart-all"
        echo "    status"
        exit 1
        ;;
esac

/etc/haproxy/haproxy.cfg 做修改，启用 spark thrift ha
重启 sudo systemctl restart haproxy
datagrip 连接串 jdbc:hive2://192.168.100.131:10001/default;user=hdfs

python 3.11 环境配置

python 3.11 是 spark 3.5 的比较好的组合，所以直接使用 python 3.11 即可，分发到每个节点上

bash

# 下载 zstd 解压工具
sudo apt update && sudo apt install -y zstd
mkdir -p /opt/module/python3.11
# 解压到对应位置
tar -I zstd -xf cpython-3.11.10+20241002-x86_64-unknown-linux-gnu-pgo+lto-full.tar.zst -C /opt/module/python3.11

配置环境变量到 /opt/module/python3.11/python/install/bin

bash

PYTHON_HOME=/opt/module/python3.11/python/install
export PATH=$PATH:$JAVA_HOME/bin:$HIVE_HOME/bin:$ZOOKEEPER_HOME/bin:$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$SPARK_HOME/bin:$SPARK_HOME/sbin:$DS_HOME/bin:$PYTHON_HOME/bin

DolphinScheduler

DolphinScheduler 部署，需求 JDK 8 / JDK 11，在当前集群环境中当然是使用 JDK8

下载压缩包

使用的数据库为 MySQL，需要 JDBC Driver

/opt/module/apache-dolphinscheduler-3.4.1-bin/libs 中下载 JDBC Driver

然后将这个链接到 cd li

master /opt/module/apache-dolphinscheduler-3.4.1-bin/master-server/libs
api /opt/module/apache-dolphinscheduler-3.4.1-bin/api-server/libs
alter /opt/module/apache-dolphinscheduler-3.4.1-bin/alert-server/libs
worker /opt/module/apache-dolphinscheduler-3.4.1-bin/worker-server/libs
tools /opt/module/apache-dolphinscheduler-3.4.1-bin/tools

bash

xcall all ln -s $DS_HOME/libs/mysql-connector-j-8.3.0.jar $DS_HOME/master-server/libs/mysql-connector-j-8.3.0.jar
xcall all ln -s $DS_HOME/libs/mysql-connector-j-8.3.0.jar $DS_HOME/api-server/libs/mysql-connector-j-8.3.0.jar
xcall all ln -s $DS_HOME/libs/mysql-connector-j-8.3.0.jar $DS_HOME/alert-server/libs/mysql-connector-j-8.3.0.jar
xcall all ln -s $DS_HOME/libs/mysql-connector-j-8.3.0.jar $DS_HOME/worker-server/libs/mysql-connector-j-8.3.0.jar
xcall all ln -s $DS_HOME/libs/mysql-connector-j-8.3.0.jar $DS_HOME/tools/libs/mysql-connector-j-8.3.0.jar

配置环境变量

修改配置文件 bin/env/dolphinscheduler_env.sh，所有节点都需要编辑 bin/env/dolphinscheduler_env.sh，确保内容一致。

bash

# JAVA_HOME, will use it to start DolphinScheduler server
export JAVA_HOME=/opt/module/jdk1.8.0_202

# Database related configuration, set database type, username and password
export DATABASE=mysql
export SPRING_PROFILES_ACTIVE=mysql
export SPRING_DATASOURCE_URL="jdbc:mysql://node1:3306/dolphinscheduler?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai&allowPublicKeyRetrieval=true"
export SPRING_DATASOURCE_USERNAME=ds
export SPRING_DATASOURCE_PASSWORD=Ab@123

# DolphinScheduler server related configuration
export SPRING_CACHE_TYPE=none
export SPRING_JACKSON_TIME_ZONE=Asia/Shanghai

# Registry center configuration, determines the type and link of the registry center
export REGISTRY_TYPE=zookeeper
export REGISTRY_ZOOKEEPER_CONNECT_STRING=node1:2181,node2:2181,node3:2181

# Tasks related configurations, need to change the configuration if you use the related tasks.
export HADOOP_HOME=/opt/module/hadoop-3.3.6
export HADOOP_CONF_DIR=${HADOOP_CONF_DIR:-/opt/soft/hadoop/etc/hadoop}
export SPARK_HOME=/opt/module/hadoop-3.3.6/etc/hadoop
export PYTHON_LAUNCHER=/opt/module/python3.11/python/install/bin/python3.11
export HIVE_HOME=/opt/module/apache-hive-3.1.3-bin
# Flink 等部署了再说
# export FLINK_HOME=${FLINK_HOME:-/opt/soft/flink}
# export DATAX_LAUNCHER=${DATAX_LAUNCHER:-/opt/soft/datax/bin/python3}

export PATH=$HADOOP_HOME/bin:$SPARK_HOME/bin:$PYTHON_LAUNCHER:$JAVA_HOME/bin:$HIVE_HOME/bin

创建 dolphinscheduler 专有数据库

sql

CREATE DATABASE dolphinscheduler DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;
CREATE USER 'ds'@'%' IDENTIFIED BY 'Ab@123';
GRANT ALL PRIVILEGES ON dolphinscheduler.* TO 'ds'@'%';
FLUSH PRIVILEGES;

初始化数据库

bash

bash $DS_HOME/tools/bin/upgrade-schema.sh

修改 ha proxy

bash

sudo vim /etc/haproxy/haproxy.cfg

bash

# DolphinScheduler Web UI 负载均衡
frontend dolphinscheduler_web
    bind *:12346
    default_backend ds_api_servers

backend ds_api_servers
    balance roundrobin
    server node1 192.168.100.131:12345 check
    server node2 192.168.100.132:12345 check

sudo systemctl restart haproxy

如果要登录，则
如果使用了 ha proxy，那么端口应该是 12346

新的群起集群脚本

bash

#!/bin/bash

# ======================== 集群配置（按实际情况修改） ========================
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# Hadoop 角色
NN_NODES=("$NODE1" "$NODE2")            # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")   # JournalNode 节点
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")   # ZooKeeper 节点
DN_NODES=("$NODE4" "$NODE5")            # DataNode 节点
NM_NODES=("$NODE4" "$NODE5")            # NodeManager 节点
RM_NODES=("$NODE1" "$NODE2")            # ResourceManager 节点
HS_NODE="$NODE1"                        # MapReduce JobHistoryServer 节点

# Spark 角色
SPARK_MASTER_NODE="$NODE1"              # Spark Master 节点（单点，可按需扩展）
SPARK_WORKER_NODES=("$NODE4" "$NODE5") # Spark Worker 节点
SPARK_THRIFT_SERVER_NODES=("$NODE1" "$NODE2") # Spark Thrift Server 节点

# NameNode 逻辑名称（必须与 hdfs-site.xml 一致）
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hive 角色
METASTORE_NODES=("$NODE1" "$NODE2")

# DolphinScheduler 角色
DS_MASTER_NODES=("$NODE1" "$NODE2")         # Master 节点
DS_API_NODES=("$NODE1" "$NODE2")            # API Server 节点
DS_ALERT_NODES=("$NODE3")                   # Alert Server 节点
DS_WORKER_NODES=("$NODE4" "$NODE5")         # Worker 节点

# 颜色
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 执行（source /etc/profile 获取环境变量）
ssh_exec() {
    local node=$1; shift
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" "
        source /etc/profile 2>/dev/null
        $*
    "
}

# ======================== ZooKeeper ========================
start_zookeeper() {
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh start
            else
                zkServer.sh start
            fi
        "
    done
    sleep 2
    print_msg "ZK" "ZooKeeper 启动完成"
}

stop_zookeeper() {
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh stop
            else
                zkServer.sh stop
            fi
        "
    done
    print_msg "ZK" "ZooKeeper 已停止"
}

# ======================== HDFS ========================
start_hdfs() {
    print_msg "HDFS" "启动 HDFS 组件..."
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start journalnode"
    done
    sleep 2

    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start namenode"
    done
    sleep 2

    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start zkfc"
    done
    sleep 2

    print_msg "DN" "启动 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start datanode"
    done
    sleep 2

    print_msg "HDFS" "HDFS 组件启动完成"
}

stop_hdfs() {
    print_msg "HDFS" "停止 HDFS 组件..."
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    print_msg "DN" "停止 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    print_msg "HDFS" "HDFS 组件已停止"
}

# ======================== YARN ========================
start_yarn() {
    print_msg "YARN" "启动 YARN 组件..."
    print_msg "RM" "启动 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    print_msg "NM" "启动 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2
    print_msg "YARN" "YARN 组件启动完成"
}

stop_yarn() {
    print_msg "YARN" "停止 YARN 组件..."
    print_msg "RM" "停止 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    print_msg "NM" "停止 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done
    print_msg "YARN" "YARN 组件已停止"
}

# ======================== MapReduce HistoryServer ========================
start_historyserver() {
    print_msg "HS" "启动 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon start historyserver"
    print_msg "HS" "HistoryServer 启动完成"
}

stop_historyserver() {
    print_msg "HS" "停止 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon stop historyserver"
    print_msg "HS" "HistoryServer 已停止"
}

# ======================== Hive Metastore ========================
start_metastore() {
    print_msg "METASTORE" "启动 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "nohup \$HIVE_HOME/bin/hive --service metastore >/dev/null 2>&1 &"
    done
    sleep 4
    print_msg "METASTORE" "Metastore 启动完成"
}

stop_metastore() {
    print_msg "METASTORE" "停止 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hadoop.hive.metastore.HiveMetaStore'"
    done
    print_msg "METASTORE" "Metastore 已停止"
}

# ======================== Spark ========================
start_spark() {
    print_msg "SPARK" "启动 Spark 组件..."
    # 这里假设你的 Spark 以 Standalone 或 YARN 方式运行 Worker
    # 如果不需要单独启动 Worker（依赖 YARN），可以注释掉
    # 启动 Spark Master
    # ssh_exec "$SPARK_MASTER_NODE" "\$SPARK_HOME/sbin/start-master.sh"
    # 启动 Spark Workers
    # for node in "${SPARK_WORKER_NODES[@]}"; do
    #     ssh_exec "$node" "\$SPARK_HOME/sbin/start-worker.sh spark://$SPARK_MASTER_NODE:7077"
    # done
    print_msg "SPARK" "Spark 组件启动完成（若需独立 Worker 请取消注释）"
}

stop_spark() {
    print_msg "SPARK" "停止 Spark 组件..."
    # ssh_exec "$SPARK_MASTER_NODE" "\$SPARK_HOME/sbin/stop-master.sh"
    # for node in "${SPARK_WORKER_NODES[@]}"; do
    #     ssh_exec "$node" "\$SPARK_HOME/sbin/stop-worker.sh"
    # done
    print_msg "SPARK" "Spark 组件已停止"
}

start_spark_thrift_server() {
    print_msg "SPARK THRIFT" "启动 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "
            nohup \$SPARK_HOME/sbin/start-thriftserver.sh \
                --master yarn \
                --deploy-mode client \
                --hiveconf hive.server2.thrift.port=10000 \
                --hiveconf hive.server2.thrift.bind.host=0.0.0.0 >/dev/null 2>&1 &
        "
        sleep 3
    done
    sleep 5
    print_msg "SPARK THRIFT" "Spark Thrift Server 启动完成"
}

stop_spark_thrift_server() {
    print_msg "SPARK THRIFT" "停止 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.spark.sql.hive.thriftserver.HiveThriftServer2'"
    done
    print_msg "SPARK THRIFT" "Spark Thrift Server 已停止"
}

# ======================== DolphinScheduler ========================
start_ds_master() {
    print_msg "DS-MASTER" "启动 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start master-server"
    done
    sleep 2
    print_msg "DS-MASTER" "Master 启动完成"
}

stop_ds_master() {
    print_msg "DS-MASTER" "停止 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop master-server"
    done
    print_msg "DS-MASTER" "Master 已停止"
}

start_ds_api() {
    print_msg "DS-API" "启动 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start api-server"
    done
    sleep 2
    print_msg "DS-API" "API Server 启动完成"
}

stop_ds_api() {
    print_msg "DS-API" "停止 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop api-server"
    done
    print_msg "DS-API" "API Server 已停止"
}

start_ds_alert() {
    print_msg "DS-ALERT" "启动 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start alert-server"
    done
    sleep 2
    print_msg "DS-ALERT" "Alert Server 启动完成"
}

stop_ds_alert() {
    print_msg "DS-ALERT" "停止 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop alert-server"
    done
    print_msg "DS-ALERT" "Alert Server 已停止"
}

start_ds_worker() {
    print_msg "DS-WORKER" "启动 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start worker-server"
    done
    sleep 2
    print_msg "DS-WORKER" "Worker 启动完成"
}

stop_ds_worker() {
    print_msg "DS-WORKER" "停止 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop worker-server"
    done
    print_msg "DS-WORKER" "Worker 已停止"
}

# 全局启停 DolphinScheduler（按照启动顺序）
start_ds() {
    start_ds_master
    start_ds_api
    start_ds_alert
    start_ds_worker
    print_msg "DS-ALL" "DolphinScheduler 全部组件启动完成"
}

stop_ds() {
    stop_ds_worker
    stop_ds_alert
    stop_ds_api
    stop_ds_master
    print_msg "DS-ALL" "DolphinScheduler 全部组件已停止"
}

# ======================== 全局启停 ========================
start_all() {
    start_zookeeper
    start_hdfs
    start_yarn
    start_historyserver
    start_metastore
    start_spark
    start_spark_thrift_server
    start_ds
    print_msg "ALL" "全部服务已启动"
}

stop_all() {
    stop_spark_thrift_server
    stop_spark
    stop_metastore
    stop_historyserver
    stop_yarn
    stop_hdfs
    stop_zookeeper
    stop_ds
    print_msg "ALL" "全部服务已停止"
}

# ======================== 状态检查 ========================
check_status() {
    echo -e "${GREEN}==================== 集群状态 ====================${NC}"

    # --- ZooKeeper ---
    print_msg "ZK" "ZooKeeper:"
    for node in "${ZK_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep QuorumPeerMain")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HDFS ---
    print_msg "HDFS" "HDFS 进程:"
    all_hdfs_nodes=($(printf "%s\n" "${NN_NODES[@]}" "${JN_NODES[@]}" "${DN_NODES[@]}" | sort -u))
    for node in "${all_hdfs_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|DFSZKFailoverController'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 HDFS 进程"
        fi
    done

    # HA 状态
    print_msg "HA" "NameNode HA 状态:"
    nn1_state=$(ssh_exec "${NN1_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null")
    nn2_state=$(ssh_exec "${NN2_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null")
    if [ "$nn1_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${GREEN}active${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${YELLOW}standby${NC}"
    elif [ "$nn2_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${YELLOW}standby${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${GREEN}active${NC}"
    else
        echo -e "  ${RED}无法获取 HA 状态（集群可能未初始化）${NC}"
    fi

    # --- YARN ---
    print_msg "YARN" "YARN 进程:"
    all_yarn_nodes=($(printf "%s\n" "${RM_NODES[@]}" "${NM_NODES[@]}" | sort -u))
    for node in "${all_yarn_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'ResourceManager|NodeManager'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 YARN 进程"
        fi
    done

    # --- MapReduce HistoryServer ---
    print_msg "HS" "MapReduce HistoryServer:"
    out=$(ssh_exec "$HS_NODE" "jps 2>/dev/null | grep JobHistoryServer")
    if [ -n "$out" ]; then
        echo -e "  $HS_NODE : ${GREEN}$out${NC}"
    else
        echo -e "  $HS_NODE : ${RED}未运行${NC}"
    fi

    # --- Hive Metastore ---
    print_msg "META" "Hive Metastore:"
    for node in "${METASTORE_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hadoop.hive.metastore.HiveMetaStore'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Spark Thrift Server ---
    print_msg "SPARK THRIFT" "Spark Thrift Server:"
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep SparkSubmit")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- DolphinScheduler ---
    print_msg "DS" "DolphinScheduler 进程:"
    # 合并所有 DS 节点并去重
    all_ds_nodes=($(printf "%s\n" "${DS_MASTER_NODES[@]}" "${DS_API_NODES[@]}" "${DS_ALERT_NODES[@]}" "${DS_WORKER_NODES[@]}" | sort -u))
    for node in "${all_ds_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'MasterServer|ApiApplicationServer|AlertServer|WorkerServer'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 DS 进程"
        fi
    done
}

# ======================== 命令入口 ========================
case "$1" in
    start-zookeeper)    start_zookeeper    ;;
    stop-zookeeper)     stop_zookeeper     ;;
    start-hdfs)         start_hdfs         ;;
    stop-hdfs)          stop_hdfs          ;;
    start-yarn)         start_yarn         ;;
    stop-yarn)          stop_yarn          ;;
    start-historyserver) start_historyserver ;;
    stop-historyserver)  stop_historyserver  ;;
    start-metastore)    start_metastore    ;;
    stop-metastore)     stop_metastore     ;;
    start-spark)        start_spark        ;;   # 已保留，但默认不启动独立 Worker
    stop-spark)         stop_spark         ;;
    start-spark-thrift) start_spark_thrift_server ;;
    stop-spark-thrift)  stop_spark_thrift_server  ;;
    start-ds-master)    start_ds_master    ;;
    stop-ds-master)     stop_ds_master     ;;
    start-ds-api)       start_ds_api       ;;
    stop-ds-api)        stop_ds_api        ;;
    start-ds-alert)     start_ds_alert     ;;
    stop-ds-alert)      stop_ds_alert      ;;
    start-ds-worker)    start_ds_worker    ;;
    stop-ds-worker)     stop_ds_worker     ;;
    start-ds)           start_ds           ;;
    stop-ds)            stop_ds            ;;
    start-all)          start_all          ;;
    stop-all)           stop_all           ;;
    restart-all)        stop_all; sleep 3; start_all ;;
    status)             check_status       ;;
    *)
        echo "用法: $0 <命令>"
        echo "  分组件启停:"
        echo "    start-zookeeper | stop-zookeeper"
        echo "    start-hdfs | stop-hdfs"
        echo "    start-yarn | stop-yarn"
        echo "    start-historyserver | stop-historyserver"
        echo "    start-metastore | stop-metastore"
        echo "    start-spark | stop-spark"
        echo "    start-spark-thrift | stop-spark-thrift"
        echo "    start-ds-master | stop-ds-master"
        echo "    start-ds-api | stop-ds-api"
        echo "    start-ds-alert | stop-ds-alert"
        echo "    start-ds-worker | stop-ds-worker"
        echo "    start-ds | stop-ds"
        echo "  全局管理:"
        echo "    start-all | stop-all | restart-all"
        echo "    status"
        exit 1
        ;;
esac

配置
- 安全中心 (Security Center) → 租户管理 (Tenant Management)
  租户对应着 Linux 系统的用户（比如 hdfs）
  需要新建一个租户，选择对应的用户，并指定这个用户有权限使用的 YARN 队列（一般先用 default 队列）
  这样，DolphinScheduler 提交的任务才知道以哪个用户身份在机器上执行
- 安全中心 → 队列管理 (Queue Management)
  如果在 YARN 里配置了专用的资源队列（比如 spark_jobs），可以在这里添加
  如果都是用的默认队列，直接使用已有的 default 队列就行
- 安全中心 → 告警实例管理 (Alert Instance Management)
  可以在这里配置告警通道（比如钉钉、邮件）
  这样当任务失败时，系统才能通过你配置的实例自动通知
  现在可以先只配置一个测试用的告警实例
- 安全中心 → 用户管理 (User Management)
  创建完租户后，需要编辑 admin 用户，将其分配到你创建的租户，并授予管理员角色
  这样才能正常创建工作流
如果内存不够，可能会触发自动保护机制
这个时候要么加内存，要么把当前的 master 和 worker 的 application.yaml 配置中的 overload 设置为 false
安装 coreutils，否则之后 dolphinscheduler 会报错
bash
```
sudo apt update
sudo apt install -y coreutils
```
之后下载 sudo 命令
bash
```
sudo apt update
sudo apt install -y sudo
```
然后查看 sudo 位置 which sudo，一般是 /usr/bin/sudo，给 $DS_HOME/bin/env/dolphinscheduler_env.sh 的 export PATH=... 再拼上 /usr/bin，分发重启

Kafka

Kafka 在 node3 node4 node5 上分别搭建，形成一个 HA 集群，因为测试资源少，所以在三个节点上同时搭建 controller 和 broker

准备数据目录，虽然是 node3 4 5 搭建，但是为了之后方便切换，直接切换即可
bash
```
xcall all sudo mkdir -p /opt/data/kafka
xcall all sudo chown -R hdfs:hadoop /opt/data/kafka
```
准备 kafka 3.6.1
解压、配置环境变量
在 Node3 节点生成集群 ID 并记住，比如输出为 rQmSOXOZRyG9_4RTBdzWuw
bash
```
cd $KAFKA_HOME && bin/kafka-storage.sh random-uuid
```

配置 KRaft，每个节点都不同，配置文件位于 $KAFKA_HOME/config/kraft/server.properties

node3 中修改为

bash

# 节点唯一 ID
node.id=3

# 同时担任 Controller 和 Broker 角色
process.roles=broker,controller

# 控制器 Quorum 投票者（三节点）
controller.quorum.voters=3@node3:9093,4@node4:9093,5@node5:9093

# 监听器配置
listeners=PLAINTEXT://node3:9092,CONTROLLER://node3:9093
advertised.listeners=PLAINTEXT://node3:9092

# 控制器间通信协议
controller.listener.names=CONTROLLER
listener.security.protocol.map=CONTROLLER:PLAINTEXT,PLAINTEXT:PLAINTEXT

# 数据存储目录
log.dirs=/opt/data/kafka

# 以下为高可用推荐配置[citation:2]
num.partitions=3
# 每个 Topic 分区默认的副本数
default.replication.factor=3
# 生产消息时，至少需要多少个副本确认写入
min.insync.replicas=2

# 保证 kafka 内部高可用
# kafka 内部 topic __consumer_offsets 记录消费位置的副本数
offsets.topic.replication.factor=3
# kafka 内部 topic __transaction_state 记录事务状态的副本数
transaction.state.log.replication.factor=3
# 约束事务日志 Topic，它要求写入事务状态时，至少要有 2 个 副本都确认完成才算成功
transaction.state.log.min.isr=2

在 node4 中修改以上内容为

bash

node.id=4
listeners=PLAINTEXT://node4:9092,CONTROLLER://node4:9093
advertised.listeners=PLAINTEXT://node4:9092

在 node5 中修改以上内容为

bash

node.id=5
listeners=PLAINTEXT://node5:9092,CONTROLLER://node5:9093
advertised.listeners=PLAINTEXT://node5:9092

格式化存储目录
在三个节点中格式化存储目录，使用刚刚生成的 UUID 在三个节点上分别执行
bash
```
cd $KAFKA_HOME && bin/kafka-storage.sh format -t <你的UUID> -c config/kraft/server.properties
```
成功后输出 Formatting /opt/data/kafka with metadata.version 3.6-IV2

以守护进程启动所有节点

bash

# 启动节点
cd $KAFKA_HOME && bin/kafka-server-start.sh -daemon config/kraft/server.properties
# 验证进程
jps | grep Kafka
# 查看控制器 quorum 状态，输出中应该包含 `CurrentVoters: [3,4,5]`，且 `LeaderId` 为三者之一
bin/kafka-metadata-quorum.sh --bootstrap-server node3:9092 describe --status

创建测试 topic 并验证高可用

bash

# 创建 topic
bin/kafka-topics.sh --create \
    --topic test-ha \
    --bootstrap-server node3:9092 \
    --partitions 3 \
    --replication-factor 3
# 查看 topic 详情，应看到 ReplicationFactor: 3，每个分区有 Leader、Replicas、Isr
bin/kafka-topics.sh --describe --topic test-ha --bootstrap-server node3:9092
# 生产消息
echo "Hello Kafka on node3!" | bin/kafka-console-producer.sh \
    --topic test-ha \
    --bootstrap-server node3:9092
# 在另外的节点上消费消息，能够收到消息说明集群工作正常
bin/kafka-console-consumer.sh \
    --topic test-ha \
    --from-beginning \
    --bootstrap-server node4:9092

测试 HA

bash

# 查当前 Leader
bin/kafka-metadata-quorum.sh --bootstrap-server node3:9092 describe --status
# 在 Leader 节点上停掉 Kafka
pkill -f kafka
# 在其他节点再次检查：Leader 应该会自动切换到另一个节点
bin/kafka-metadata-quorum.sh --bootstrap-server node4:9092 describe --status
# 消费消息：仍然能正常消费
bin/kafka-console-consumer.sh \
    --topic test-ha \
    --from-beginning \
    --bootstrap-server node4:9092,node5:9092

新的群起脚本

bash

#!/bin/bash

# ======================== 集群配置（按实际情况修改） ========================
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# Hadoop 角色
NN_NODES=("$NODE1" "$NODE2")            # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")   # JournalNode 节点
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")   # ZooKeeper 节点
DN_NODES=("$NODE4" "$NODE5")            # DataNode 节点
NM_NODES=("$NODE4" "$NODE5")            # NodeManager 节点
RM_NODES=("$NODE1" "$NODE2")            # ResourceManager 节点
HS_NODE="$NODE1"                        # MapReduce JobHistoryServer 节点

# Spark 角色
SPARK_MASTER_NODE="$NODE1"              # Spark Master 节点（单点，可按需扩展）
SPARK_WORKER_NODES=("$NODE4" "$NODE5") # Spark Worker 节点
SPARK_THRIFT_SERVER_NODES=("$NODE1" "$NODE2") # Spark Thrift Server 节点

# NameNode 逻辑名称（必须与 hdfs-site.xml 一致）
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hive 角色
METASTORE_NODES=("$NODE1" "$NODE2")

# DolphinScheduler 角色
DS_MASTER_NODES=("$NODE1" "$NODE2")         # Master 节点
DS_API_NODES=("$NODE1" "$NODE2")            # API Server 节点
DS_ALERT_NODES=("$NODE3")                   # Alert Server 节点
DS_WORKER_NODES=("$NODE4" "$NODE5")         # Worker 节点

# Kafka KRaft 集群所有节点
KAFKA_NODES=("$NODE3" "$NODE4" "$NODE5")

# 颜色
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 执行（source /etc/profile 获取环境变量）
ssh_exec() {
    local node=$1; shift
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" "
        source /etc/profile 2>/dev/null
        $*
    "
}

# ======================== ZooKeeper ========================
start_zookeeper() {
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh start
            else
                zkServer.sh start
            fi
        "
    done
    sleep 2
    print_msg "ZK" "ZooKeeper 启动完成"
}

stop_zookeeper() {
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh stop
            else
                zkServer.sh stop
            fi
        "
    done
    print_msg "ZK" "ZooKeeper 已停止"
}

# ======================== HDFS ========================
start_hdfs() {
    print_msg "HDFS" "启动 HDFS 组件..."
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start journalnode"
    done
    sleep 2

    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start namenode"
    done
    sleep 2

    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start zkfc"
    done
    sleep 2

    print_msg "DN" "启动 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start datanode"
    done
    sleep 2

    print_msg "HDFS" "HDFS 组件启动完成"
}

stop_hdfs() {
    print_msg "HDFS" "停止 HDFS 组件..."
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    print_msg "DN" "停止 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    print_msg "HDFS" "HDFS 组件已停止"
}

# ======================== YARN ========================
start_yarn() {
    print_msg "YARN" "启动 YARN 组件..."
    print_msg "RM" "启动 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    print_msg "NM" "启动 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2
    print_msg "YARN" "YARN 组件启动完成"
}

stop_yarn() {
    print_msg "YARN" "停止 YARN 组件..."
    print_msg "RM" "停止 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    print_msg "NM" "停止 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done
    print_msg "YARN" "YARN 组件已停止"
}

# ======================== MapReduce HistoryServer ========================
start_historyserver() {
    print_msg "HS" "启动 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon start historyserver"
    print_msg "HS" "HistoryServer 启动完成"
}

stop_historyserver() {
    print_msg "HS" "停止 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon stop historyserver"
    print_msg "HS" "HistoryServer 已停止"
}

# ======================== Hive Metastore ========================
start_metastore() {
    print_msg "METASTORE" "启动 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "nohup \$HIVE_HOME/bin/hive --service metastore >/dev/null 2>&1 &"
    done
    sleep 4
    print_msg "METASTORE" "Metastore 启动完成"
}

stop_metastore() {
    print_msg "METASTORE" "停止 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hadoop.hive.metastore.HiveMetaStore'"
    done
    print_msg "METASTORE" "Metastore 已停止"
}

# ======================== Spark ========================
start_spark() {
    print_msg "SPARK" "启动 Spark 组件..."
    # 这里假设你的 Spark 以 Standalone 或 YARN 方式运行 Worker
    # 如果不需要单独启动 Worker（依赖 YARN），可以注释掉
    # 启动 Spark Master
    # ssh_exec "$SPARK_MASTER_NODE" "\$SPARK_HOME/sbin/start-master.sh"
    # 启动 Spark Workers
    # for node in "${SPARK_WORKER_NODES[@]}"; do
    #     ssh_exec "$node" "\$SPARK_HOME/sbin/start-worker.sh spark://$SPARK_MASTER_NODE:7077"
    # done
    print_msg "SPARK" "Spark 组件启动完成（若需独立 Worker 请取消注释）"
}

stop_spark() {
    print_msg "SPARK" "停止 Spark 组件..."
    # ssh_exec "$SPARK_MASTER_NODE" "\$SPARK_HOME/sbin/stop-master.sh"
    # for node in "${SPARK_WORKER_NODES[@]}"; do
    #     ssh_exec "$node" "\$SPARK_HOME/sbin/stop-worker.sh"
    # done
    print_msg "SPARK" "Spark 组件已停止"
}

start_spark_thrift_server() {
    print_msg "SPARK THRIFT" "启动 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "
            nohup \$SPARK_HOME/sbin/start-thriftserver.sh \
                --master yarn \
                --deploy-mode client \
                --hiveconf hive.server2.thrift.port=10000 \
                --hiveconf hive.server2.thrift.bind.host=0.0.0.0 >/dev/null 2>&1 &
        "
        sleep 3
    done
    sleep 5
    print_msg "SPARK THRIFT" "Spark Thrift Server 启动完成"
}

stop_spark_thrift_server() {
    print_msg "SPARK THRIFT" "停止 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.spark.sql.hive.thriftserver.HiveThriftServer2'"
    done
    print_msg "SPARK THRIFT" "Spark Thrift Server 已停止"
}

# ======================== DolphinScheduler ========================
start_ds_master() {
    print_msg "DS-MASTER" "启动 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start master-server"
    done
    sleep 2
    print_msg "DS-MASTER" "Master 启动完成"
}

stop_ds_master() {
    print_msg "DS-MASTER" "停止 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop master-server"
    done
    print_msg "DS-MASTER" "Master 已停止"
}

start_ds_api() {
    print_msg "DS-API" "启动 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start api-server"
    done
    sleep 2
    print_msg "DS-API" "API Server 启动完成"
}

stop_ds_api() {
    print_msg "DS-API" "停止 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop api-server"
    done
    print_msg "DS-API" "API Server 已停止"
}

start_ds_alert() {
    print_msg "DS-ALERT" "启动 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start alert-server"
    done
    sleep 2
    print_msg "DS-ALERT" "Alert Server 启动完成"
}

stop_ds_alert() {
    print_msg "DS-ALERT" "停止 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop alert-server"
    done
    print_msg "DS-ALERT" "Alert Server 已停止"
}

start_ds_worker() {
    print_msg "DS-WORKER" "启动 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start worker-server"
    done
    sleep 2
    print_msg "DS-WORKER" "Worker 启动完成"
}

stop_ds_worker() {
    print_msg "DS-WORKER" "停止 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop worker-server"
    done
    print_msg "DS-WORKER" "Worker 已停止"
}

# 全局启停 DolphinScheduler（按照启动顺序）
start_ds() {
    start_ds_master
    start_ds_api
    start_ds_alert
    start_ds_worker
    print_msg "DS-ALL" "DolphinScheduler 全部组件启动完成"
}

stop_ds() {
    stop_ds_worker
    stop_ds_alert
    stop_ds_api
    stop_ds_master
    print_msg "DS-ALL" "DolphinScheduler 全部组件已停止"
}

# ======================== Kafka ========================
start_kafka() {
    print_msg "KAFKA" "启动 Kafka 集群..."
    for node in "${KAFKA_NODES[@]}"; do
        print_msg "KAFKA" "启动 $node 上的 Kafka Broker"
        ssh_exec "$node" "\$KAFKA_HOME/bin/kafka-server-start.sh -daemon \$KAFKA_HOME/config/kraft/server.properties"
    done
    sleep 5
    print_msg "KAFKA" "Kafka 集群启动完成"
}

stop_kafka() {
    print_msg "KAFKA" "停止 Kafka 集群..."
    for node in "${KAFKA_NODES[@]}"; do
        print_msg "KAFKA" "停止 $node 上的 Kafka Broker"
        ssh_exec "$node" "pkill -f 'kafka.Kafka'"
    done
    sleep 3
    print_msg "KAFKA" "Kafka 集群已停止"
}

# ======================== 全局启停 ========================
start_all() {
    start_zookeeper
    start_hdfs
    start_yarn
    start_historyserver
    start_metastore
    start_spark
    start_spark_thrift_server
    start_kafka
    start_ds
    print_msg "ALL" "全部服务已启动"
}

stop_all() {
    stop_spark_thrift_server
    stop_spark
    stop_metastore
    stop_historyserver
    stop_kafka
    stop_yarn
    stop_hdfs
    stop_zookeeper
    stop_ds
    print_msg "ALL" "全部服务已停止"
}

# ======================== 状态检查 ========================
check_status() {
    echo -e "${GREEN}==================== 集群状态 ====================${NC}"

    # --- ZooKeeper ---
    print_msg "ZK" "ZooKeeper:"
    for node in "${ZK_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep QuorumPeerMain")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HDFS ---
    print_msg "HDFS" "HDFS 进程:"
    all_hdfs_nodes=($(printf "%s\n" "${NN_NODES[@]}" "${JN_NODES[@]}" "${DN_NODES[@]}" | sort -u))
    for node in "${all_hdfs_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|DFSZKFailoverController'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 HDFS 进程"
        fi
    done

    # HA 状态
    print_msg "HA" "NameNode HA 状态:"
    nn1_state=$(ssh_exec "${NN1_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null")
    nn2_state=$(ssh_exec "${NN2_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null")
    if [ "$nn1_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${GREEN}active${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${YELLOW}standby${NC}"
    elif [ "$nn2_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${YELLOW}standby${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${GREEN}active${NC}"
    else
        echo -e "  ${RED}无法获取 HA 状态（集群可能未初始化）${NC}"
    fi

    # --- YARN ---
    print_msg "YARN" "YARN 进程:"
    all_yarn_nodes=($(printf "%s\n" "${RM_NODES[@]}" "${NM_NODES[@]}" | sort -u))
    for node in "${all_yarn_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'ResourceManager|NodeManager'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 YARN 进程"
        fi
    done

    # --- MapReduce HistoryServer ---
    print_msg "HS" "MapReduce HistoryServer:"
    out=$(ssh_exec "$HS_NODE" "jps 2>/dev/null | grep JobHistoryServer")
    if [ -n "$out" ]; then
        echo -e "  $HS_NODE : ${GREEN}$out${NC}"
    else
        echo -e "  $HS_NODE : ${RED}未运行${NC}"
    fi

    # --- Hive Metastore ---
    print_msg "META" "Hive Metastore:"
    for node in "${METASTORE_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hadoop.hive.metastore.HiveMetaStore'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Spark Thrift Server ---
    print_msg "SPARK THRIFT" "Spark Thrift Server:"
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep SparkSubmit")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Kafka ---
    print_msg "KAFKA" "Kafka 进程:"
    for node in "${KAFKA_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep Kafka")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- DolphinScheduler ---
    print_msg "DS" "DolphinScheduler 进程:"
    # 合并所有 DS 节点并去重
    all_ds_nodes=($(printf "%s\n" "${DS_MASTER_NODES[@]}" "${DS_API_NODES[@]}" "${DS_ALERT_NODES[@]}" "${DS_WORKER_NODES[@]}" | sort -u))
    for node in "${all_ds_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'MasterServer|ApiApplicationServer|AlertServer|WorkerServer'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 DS 进程"
        fi
    done
}

# ======================== 命令入口 ========================
case "$1" in
    start-zookeeper)    start_zookeeper    ;;
    stop-zookeeper)     stop_zookeeper     ;;
    start-hdfs)         start_hdfs         ;;
    stop-hdfs)          stop_hdfs          ;;
    start-yarn)         start_yarn         ;;
    stop-yarn)          stop_yarn          ;;
    start-historyserver) start_historyserver ;;
    stop-historyserver)  stop_historyserver  ;;
    start-metastore)    start_metastore    ;;
    stop-metastore)     stop_metastore     ;;
    start-spark)        start_spark        ;;   # 已保留，但默认不启动独立 Worker
    stop-spark)         stop_spark         ;;
    start-spark-thrift) start_spark_thrift_server ;;
    stop-spark-thrift)  stop_spark_thrift_server  ;;
    start-ds-master)    start_ds_master    ;;
    stop-ds-master)     stop_ds_master     ;;
    start-ds-api)       start_ds_api       ;;
    stop-ds-api)        stop_ds_api        ;;
    start-ds-alert)     start_ds_alert     ;;
    stop-ds-alert)      stop_ds_alert      ;;
    start-ds-worker)    start_ds_worker    ;;
    stop-ds-worker)     stop_ds_worker     ;;
    start-ds)           start_ds           ;;
    stop-ds)            stop_ds            ;;
    start-kafka)        start_kafka        ;;
    stop-kafka)         stop_kafka         ;;
    start-all)          start_all          ;;
    stop-all)           stop_all           ;;
    restart-all)        stop_all; sleep 3; start_all ;;
    status)             check_status       ;;
    *)
        echo "用法: $0 <命令>"
        echo "  分组件启停:"
        echo "    start-zookeeper | stop-zookeeper"
        echo "    start-hdfs | stop-hdfs"
        echo "    start-yarn | stop-yarn"
        echo "    start-historyserver | stop-historyserver"
        echo "    start-metastore | stop-metastore"
        echo "    start-spark | stop-spark"
        echo "    start-spark-thrift | stop-spark-thrift"
        echo "    start-ds-master | stop-ds-master"
        echo "    start-ds-api | stop-ds-api"
        echo "    start-ds-alert | stop-ds-alert"
        echo "    start-ds-worker | stop-ds-worker"
        echo "    start-ds | stop-ds"
        echo "    start-kafka | stop-kafka"
        echo "  全局管理:"
        echo "    start-all | stop-all | restart-all"
        echo "    status"
        exit 1
        ;;
esac

Flink

Flink 虽然有自己单独部署的状态，但是在生产状态下还是 flink on yarn，即不需要自己管理资源，只需要管理 job 即可

下载 flink 1.17.2

解压缩，配置环境变量

可以看到输出是 compressed data，说明压缩包被重新命名过，需要首先使用 gzip 来解压，然后再解压 tar 包

bash

gunzip flink-1.17.2-bin-scala_2.12.gz
tar -xf flink-1.17.2-bin-scala_2.12

bash

FLINK_HOME=/opt/module/flink-1.17.2
# 给定 flink 和 hadoop 链接的环境变量
export HADOOP_CLASSPATH=$($HADOOP_HOME/bin/hadoop classpath)
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop

准备 hadoop 和本地文件目录地址

bash

xcall all mkdir -p /opt/data/flink/tmp
hdfs dfs -mkdir -p /bigdata/flink/ha/
hdfs dfs -mkdir -p /bigdata/flink/checkpoints
hdfs dfs -mkdir -p /bigdata/flink/savepoints
hdfs dfs -mkdir -p /bigdata/flink/completed-jobs/

修改配置文件 $FLINK_HOME/conf/flink-conf.yaml

bash

################################################################################
#  Licensed to the Apache Software Foundation (ASF) under one
#  or more contributor license agreements.  See the NOTICE file
#  distributed with this work for additional information
#  regarding copyright ownership.  The ASF licenses this file
#  to you under the Apache License, Version 2.0 (the
#  "License"); you may not use this file except in compliance
#  with the License.  You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
#  Unless required by applicable law or agreed to in writing, software
#  distributed under the License is distributed on an "AS IS" BASIS,
#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
#  See the License for the specific language governing permissions and
# limitations under the License.
################################################################################


#==============================================================================
# Common
#==============================================================================

# JobManager RPC 地址（YARN 模式下会被覆盖，但保留有助于调试）
jobmanager.rpc.address: node3

# JobManager RPC 端口
jobmanager.rpc.port: 6123

# 绑定到所有网络接口（接受来自其他节点的连接）
jobmanager.bind-host: 0.0.0.0

# JobManager 进程总内存
jobmanager.memory.process.size: 1024m

# TaskManager 绑定地址
taskmanager.bind-host: 0.0.0.0

# TaskManager 主机名（YARN 会自动分配，此处可注释掉）
# taskmanager.host: localhost

# TaskManager 进程总内存
taskmanager.memory.process.size: 1024m

# 每个 TaskManager 提供的任务槽位数
taskmanager.numberOfTaskSlots: 4

# 默认并行度
parallelism.default: 4

#==============================================================================
# High Availability (基于 ZooKeeper)
#==============================================================================

# 高可用模式
high-availability.type: zookeeper

# ZooKeeper 仲裁地址
high-availability.zookeeper.quorum: node1:2181,node2:2181,node3:2181

# 高可用元数据存储路径（HDFS）
high-availability.storageDir: hdfs://hadoop/bigdata/flink/ha/

# ZooKeeper 根路径
high-availability.zookeeper.path.root: /flink

# 集群 ID（用于 ZK 中区分多个 Flink 集群）
high-availability.cluster-id: /flink-yarn-cluster

# ZK ACL 模式（默认开放）
high-availability.zookeeper.client.acl: open

#==============================================================================
# Fault tolerance and checkpointing
#==============================================================================

# 检查点间隔（每 3 分钟一次）
execution.checkpointing.interval: 3min

# 检查点模式（精确一次）
execution.checkpointing.mode: EXACTLY_ONCE

# 检查点超时时间
execution.checkpointing.timeout: 10min

# 同时进行的最大检查点数
execution.checkpointing.max-concurrent-checkpoints: 1

# 外部化检查点保留策略（任务取消时保留检查点）
execution.checkpointing.externalized-checkpoint-retention: RETAIN_ON_CANCELLATION

# 状态后端（使用 RocksDB）
state.backend.type: rocksdb

# 检查点存储路径
state.checkpoints.dir: hdfs://hadoop/bigdata/flink/checkpoints

# 保存点存储路径
state.savepoints.dir: hdfs://hadoop/bigdata/flink/savepoints

# 增量检查点（减少检查点开销）
state.backend.incremental: true

# 故障转移策略（只重启受影响的任务）
jobmanager.execution.failover-strategy: region

#==============================================================================
# Rest & web frontend
#==============================================================================

# REST 端口
rest.port: 8081

# REST 客户端连接地址
rest.address: 0.0.0.0

# REST 绑定地址（接受来自外部的连接）
rest.bind-address: 0.0.0.0

# 允许从 Web UI 提交作业
web.submit.enable: true

# 允许从 Web UI 取消作业
web.cancel.enable: true

#==============================================================================
# YARN
#==============================================================================

# 执行目标（YARN 应用模式）
execution.target: yarn-application

# YARN 应用名称
yarn.application.name: FlinkCluster

# 每个 YARN 容器的 vcores
yarn.containers.vcores: 2

# ApplicationMaster 最大重试次数（防止无限重试）
yarn.application-attempts: 5

# YARN 队列
yarn.application.queue: default

#==============================================================================
# Advanced
#==============================================================================

# 临时文件目录
io.tmp.dirs: /opt/data/flink/tmp

# 类加载顺序（子优先，允许应用使用自己的依赖）
classloader.resolve-order: child-first

# 网络内存占比
taskmanager.memory.network.fraction: 0.1
taskmanager.memory.network.min: 64mb
taskmanager.memory.network.max: 1gb

#==============================================================================
# HistoryServer
#==============================================================================

# 已完成的作业存档目录
jobmanager.archive.fs.dir: hdfs://hadoop/bigdata/flink/completed-jobs/

# HistoryServer Web 地址
historyserver.web.address: 0.0.0.0

# HistoryServer Web 端口
historyserver.web.port: 8082

# HistoryServer 监控的归档目录
historyserver.archive.fs.dir: hdfs://hadoop/bigdata/flink/completed-jobs/

# 刷新归档目录的间隔
historyserver.archive.fs.refresh-interval: 10000

分发项目到节点上

给定软连接

bash

ln -sf $HADOOP_HOME/share/hadoop/yarn/*.jar $FLINK_HOME/lib/
ln -sf $HADOOP_HOME/share/hadoop/hdfs/*.jar $FLINK_HOME/lib/
ln -sf $HADOOP_HOME/share/hadoop/common/*.jar $FLINK_HOME/lib/
ln -sf $HADOOP_HOME/share/hadoop/common/lib/*.jar $FLINK_HOME/lib/
ln -sf $HADOOP_HOME/share/hadoop/mapreduce/*.jar $FLINK_HOME/lib/

在 node3 节点上执行命令，开启一个常驻的 flink 集群
bash
```
cd $FLINK_HOME && bin/yarn-session.sh -d
```

新的群起脚本

bash

#!/bin/bash

# ======================== 集群配置（按实际情况修改） ========================
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# Hadoop 角色
NN_NODES=("$NODE1" "$NODE2")            # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")   # JournalNode 节点
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")   # ZooKeeper 节点
DN_NODES=("$NODE4" "$NODE5")            # DataNode 节点
NM_NODES=("$NODE4" "$NODE5")            # NodeManager 节点
RM_NODES=("$NODE1" "$NODE2")            # ResourceManager 节点
HS_NODE="$NODE1"                        # MapReduce JobHistoryServer 节点

# Spark 角色
SPARK_THRIFT_SERVER_NODES=("$NODE1" "$NODE2") # Spark Thrift Server 节点

# NameNode 逻辑名称（必须与 hdfs-site.xml 一致）
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hive 角色
METASTORE_NODES=("$NODE1" "$NODE2")

# DolphinScheduler 角色
DS_MASTER_NODES=("$NODE1" "$NODE2")         # Master 节点
DS_API_NODES=("$NODE1" "$NODE2")            # API Server 节点
DS_ALERT_NODES=("$NODE3")                   # Alert Server 节点
DS_WORKER_NODES=("$NODE4" "$NODE5")         # Worker 节点

# Flink 角色
FLINK_NODES=("$NODE3")                       # Flink 提交节点（通常选一个即可）

# Kafka KRaft 集群所有节点
KAFKA_NODES=("$NODE3" "$NODE4" "$NODE5")

# 颜色
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 执行（source /etc/profile 获取环境变量）
ssh_exec() {
    local node=$1; shift
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" "
        source /etc/profile 2>/dev/null
        $*
    "
}

# ======================== ZooKeeper ========================
start_zookeeper() {
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh start
            else
                zkServer.sh start
            fi
        "
    done
    sleep 2
    print_msg "ZK" "ZooKeeper 启动完成"
}

stop_zookeeper() {
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh stop
            else
                zkServer.sh stop
            fi
        "
    done
    print_msg "ZK" "ZooKeeper 已停止"
}

# ======================== HDFS ========================
start_hdfs() {
    print_msg "HDFS" "启动 HDFS 组件..."
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start journalnode"
    done
    sleep 2

    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start namenode"
    done
    sleep 2

    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start zkfc"
    done
    sleep 2

    print_msg "DN" "启动 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon start datanode"
    done
    sleep 2

    print_msg "HDFS" "HDFS 组件启动完成"
}

stop_hdfs() {
    print_msg "HDFS" "停止 HDFS 组件..."
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    print_msg "DN" "停止 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    print_msg "HDFS" "HDFS 组件已停止"
}

# ======================== YARN ========================
start_yarn() {
    print_msg "YARN" "启动 YARN 组件..."
    print_msg "RM" "启动 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    print_msg "NM" "启动 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2
    print_msg "YARN" "YARN 组件启动完成"
}

stop_yarn() {
    print_msg "YARN" "停止 YARN 组件..."
    print_msg "RM" "停止 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    print_msg "NM" "停止 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done
    print_msg "YARN" "YARN 组件已停止"
}

# ======================== MapReduce HistoryServer ========================
start_historyserver() {
    print_msg "HS" "启动 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon start historyserver"
    print_msg "HS" "HistoryServer 启动完成"
}

stop_historyserver() {
    print_msg "HS" "停止 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon stop historyserver"
    print_msg "HS" "HistoryServer 已停止"
}

# ======================== Hive Metastore ========================
start_metastore() {
    print_msg "METASTORE" "启动 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "nohup \$HIVE_HOME/bin/hive --service metastore >/dev/null 2>&1 &"
    done
    sleep 4
    print_msg "METASTORE" "Metastore 启动完成"
}

stop_metastore() {
    print_msg "METASTORE" "停止 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hadoop.hive.metastore.HiveMetaStore'"
    done
    print_msg "METASTORE" "Metastore 已停止"
}

# ======================== Spark ========================
start_spark_thrift_server() {
    print_msg "SPARK THRIFT" "启动 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "
            nohup \$SPARK_HOME/sbin/start-thriftserver.sh \
                --master yarn \
                --deploy-mode client \
                --hiveconf hive.server2.thrift.port=10000 \
                --hiveconf hive.server2.thrift.bind.host=0.0.0.0 >/dev/null 2>&1 &
        "
        sleep 3
    done
    sleep 5
    print_msg "SPARK THRIFT" "Spark Thrift Server 启动完成"
}

stop_spark_thrift_server() {
    print_msg "SPARK THRIFT" "停止 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.spark.sql.hive.thriftserver.HiveThriftServer2'"
    done
    print_msg "SPARK THRIFT" "Spark Thrift Server 已停止"
}

# ======================== DolphinScheduler ========================
start_ds_master() {
    print_msg "DS-MASTER" "启动 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start master-server"
    done
    sleep 2
    print_msg "DS-MASTER" "Master 启动完成"
}

stop_ds_master() {
    print_msg "DS-MASTER" "停止 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop master-server"
    done
    print_msg "DS-MASTER" "Master 已停止"
}

start_ds_api() {
    print_msg "DS-API" "启动 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start api-server"
    done
    sleep 2
    print_msg "DS-API" "API Server 启动完成"
}

stop_ds_api() {
    print_msg "DS-API" "停止 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop api-server"
    done
    print_msg "DS-API" "API Server 已停止"
}

start_ds_alert() {
    print_msg "DS-ALERT" "启动 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start alert-server"
    done
    sleep 2
    print_msg "DS-ALERT" "Alert Server 启动完成"
}

stop_ds_alert() {
    print_msg "DS-ALERT" "停止 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop alert-server"
    done
    print_msg "DS-ALERT" "Alert Server 已停止"
}

start_ds_worker() {
    print_msg "DS-WORKER" "启动 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start worker-server"
    done
    sleep 2
    print_msg "DS-WORKER" "Worker 启动完成"
}

stop_ds_worker() {
    print_msg "DS-WORKER" "停止 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop worker-server"
    done
    print_msg "DS-WORKER" "Worker 已停止"
}

# ======================== Flink on YARN ========================
start_flink() {
    print_msg "FLINK" "启动 Flink YARN Session..."

    # 检查是否已经存在运行中的 Flink Session
    existing=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster" | awk '{print $1}')
    if [ -n "$existing" ]; then
        print_warn "FLINK" "Flink YARN Session 已在运行中 (Application ID: $existing)，跳过启动"
        return
    fi

    # 提交 Flink YARN Session
    ssh_exec "${FLINK_NODES[0]}" "\$FLINK_HOME/bin/yarn-session.sh -d"
    sleep 5

    # 验证是否启动成功
    app_id=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster" | awk '{print $1}')
    if [ -n "$app_id" ]; then
        print_msg "FLINK" "Flink YARN Session 启动成功 (Application ID: $app_id)"
    else
        print_error "FLINK" "Flink YARN Session 启动失败，请检查日志"
    fi
}

stop_flink() {
    print_msg "FLINK" "停止 Flink YARN Session..."

    # 查找运行中的 Flink Session
    app_id=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster" | awk '{print $1}')

    if [ -z "$app_id" ]; then
        print_warn "FLINK" "未找到运行中的 Flink YARN Session"
        return
    fi

    # 停止 Flink Session
    yarn application -kill "$app_id"
    sleep 3

    # 验证是否已停止
    still_running=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "$app_id")
    if [ -z "$still_running" ]; then
        print_msg "FLINK" "Flink YARN Session 已停止 (Application ID: $app_id)"
    else
        print_error "FLINK" "Flink YARN Session 停止失败，请手动执行: yarn application -kill $app_id"
    fi
}


# ======================== DolphinScheduler ========================
start_ds() {
    start_ds_master
    start_ds_api
    start_ds_alert
    start_ds_worker
    print_msg "DS-ALL" "DolphinScheduler 全部组件启动完成"
}

stop_ds() {
    stop_ds_worker
    stop_ds_alert
    stop_ds_api
    stop_ds_master
    print_msg "DS-ALL" "DolphinScheduler 全部组件已停止"
}

# ======================== Kafka ========================
start_kafka() {
    print_msg "KAFKA" "启动 Kafka 集群..."
    for node in "${KAFKA_NODES[@]}"; do
        print_msg "KAFKA" "启动 $node 上的 Kafka Broker"
        ssh_exec "$node" "\$KAFKA_HOME/bin/kafka-server-start.sh -daemon \$KAFKA_HOME/config/kraft/server.properties"
    done
    sleep 5
    print_msg "KAFKA" "Kafka 集群启动完成"
}

stop_kafka() {
    print_msg "KAFKA" "停止 Kafka 集群..."
    for node in "${KAFKA_NODES[@]}"; do
        print_msg "KAFKA" "停止 $node 上的 Kafka Broker"
        ssh_exec "$node" "pkill -f 'kafka.Kafka'"
    done
    sleep 3
    print_msg "KAFKA" "Kafka 集群已停止"
}

# ======================== 全局启停 ========================
start_all() {
    start_zookeeper
    start_hdfs
    start_yarn
    start_historyserver
    start_metastore
    start_spark
    start_spark_thrift_server
    start_kafka
    start_flink
    start_ds
    print_msg "ALL" "全部服务已启动"
}

stop_all() {
    stop_spark_thrift_server
    stop_spark
    stop_metastore
    stop_historyserver
    stop_flink
    stop_kafka
    stop_yarn
    stop_hdfs
    stop_zookeeper
    stop_ds
    print_msg "ALL" "全部服务已停止"
}

# ======================== 状态检查 ========================
check_status() {
    echo -e "${GREEN}==================== 集群状态 ====================${NC}"

    # --- ZooKeeper ---
    print_msg "ZK" "ZooKeeper:"
    for node in "${ZK_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep QuorumPeerMain")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HDFS ---
    print_msg "HDFS" "HDFS 进程:"
    all_hdfs_nodes=($(printf "%s\n" "${NN_NODES[@]}" "${JN_NODES[@]}" "${DN_NODES[@]}" | sort -u))
    for node in "${all_hdfs_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|DFSZKFailoverController'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 HDFS 进程"
        fi
    done

    # HA 状态
    print_msg "HA" "NameNode HA 状态:"
    nn1_state=$(ssh_exec "${NN1_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null")
    nn2_state=$(ssh_exec "${NN2_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null")
    if [ "$nn1_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${GREEN}active${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${YELLOW}standby${NC}"
    elif [ "$nn2_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${YELLOW}standby${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${GREEN}active${NC}"
    else
        echo -e "  ${RED}无法获取 HA 状态（集群可能未初始化）${NC}"
    fi

    # --- YARN ---
    local yarn_online=false
    print_msg "YARN" "YARN 进程:"
    all_yarn_nodes=($(printf "%s\n" "${RM_NODES[@]}" "${NM_NODES[@]}" | sort -u))
    for node in "${all_yarn_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'ResourceManager|NodeManager'")
        if [ -n "$out" ]; then
            yarn_online=true
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 YARN 进程"
        fi
    done

    # --- MapReduce HistoryServer ---
    print_msg "HS" "MapReduce HistoryServer:"
    out=$(ssh_exec "$HS_NODE" "jps 2>/dev/null | grep JobHistoryServer")
    if [ -n "$out" ]; then
        echo -e "  $HS_NODE : ${GREEN}$out${NC}"
    else
        echo -e "  $HS_NODE : ${RED}未运行${NC}"
    fi

    # --- Hive Metastore ---
    print_msg "META" "Hive Metastore:"
    for node in "${METASTORE_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hadoop.hive.metastore.HiveMetaStore'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Spark Thrift Server ---
    print_msg "SPARK THRIFT" "Spark Thrift Server:"
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep SparkSubmit")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Flink on YARN ---
    print_msg "FLINK" "Flink on YARN:"
    if $yarn_online; then
        flink_app=$(timeout 10 yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster")
        if [ -n "$flink_app" ]; then
            app_id=$(echo "$flink_app" | awk '{print $1}')
            app_status=$(echo "$flink_app" | awk '{print $6}')
            web_ui=$(echo "$flink_app" | awk '{print $10}')
            echo -e "  Application ID : ${GREEN}$app_id${NC}"
            echo -e "  状态           : ${GREEN}$app_status${NC}"
            echo -e "  Web UI         : ${GREEN}$web_ui${NC}"
        else
            echo -e "  ${YELLOW}Flink Session 未启动${NC}"
        fi
    else
        echo -e "  ${YELLOW}YARN 离线，跳过 Flink 状态检查${NC}"
    fi


    # --- Kafka ---
    print_msg "KAFKA" "Kafka 进程:"
    for node in "${KAFKA_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep Kafka")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- DolphinScheduler ---
    print_msg "DS" "DolphinScheduler 进程:"
    # 合并所有 DS 节点并去重
    all_ds_nodes=($(printf "%s\n" "${DS_MASTER_NODES[@]}" "${DS_API_NODES[@]}" "${DS_ALERT_NODES[@]}" "${DS_WORKER_NODES[@]}" | sort -u))
    for node in "${all_ds_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'MasterServer|ApiApplicationServer|AlertServer|WorkerServer'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 DS 进程"
        fi
    done
}

# ======================== 命令入口 ========================
case "$1" in
    start-zookeeper)    start_zookeeper    ;;
    stop-zookeeper)     stop_zookeeper     ;;
    start-hdfs)         start_hdfs         ;;
    stop-hdfs)          stop_hdfs          ;;
    start-yarn)         start_yarn         ;;
    stop-yarn)          stop_yarn          ;;
    start-historyserver) start_historyserver ;;
    stop-historyserver)  stop_historyserver  ;;
    start-metastore)    start_metastore    ;;
    stop-metastore)     stop_metastore     ;;
    start-spark)        start_spark        ;;   # 已保留，但默认不启动独立 Worker
    stop-spark)         stop_spark         ;;
    start-spark-thrift) start_spark_thrift_server ;;
    stop-spark-thrift)  stop_spark_thrift_server  ;;
    start-ds-master)    start_ds_master    ;;
    stop-ds-master)     stop_ds_master     ;;
    start-ds-api)       start_ds_api       ;;
    stop-ds-api)        stop_ds_api        ;;
    start-ds-alert)     start_ds_alert     ;;
    stop-ds-alert)      stop_ds_alert      ;;
    start-ds-worker)    start_ds_worker    ;;
    stop-ds-worker)     stop_ds_worker     ;;
    start-ds)           start_ds           ;;
    stop-ds)            stop_ds            ;;
    start-kafka)        start_kafka        ;;
    stop-kafka)         stop_kafka         ;;
    start-flink)        start_flink        ;;
    stop-flink)         stop_flink         ;;
    start-all)          start_all          ;;
    stop-all)           stop_all           ;;
    restart-all)        stop_all; sleep 3; start_all ;;
    status)             check_status       ;;
    *)
        echo "用法: $0 <命令>"
        echo "  分组件启停:"
        echo "    start-zookeeper | stop-zookeeper"
        echo "    start-hdfs | stop-hdfs"
        echo "    start-yarn | stop-yarn"
        echo "    start-historyserver | stop-historyserver"
        echo "    start-metastore | stop-metastore"
        echo "    start-spark | stop-spark"
        echo "    start-spark-thrift | stop-spark-thrift"
        echo "    start-ds-master | stop-ds-master"
        echo "    start-ds-api | stop-ds-api"
        echo "    start-ds-alert | stop-ds-alert"
        echo "    start-ds-worker | stop-ds-worker"
        echo "    start-ds | stop-ds"
        echo "    start-kafka | stop-kafka"
        echo "    start-flink | stop-flink"
        echo "  全局管理:"
        echo "    start-all | stop-all | restart-all"
        echo "    status"
        exit 1
        ;;
esac

Kerberos 鉴权（单用户 HDFS 测试验证）

kerberos 鉴权是生产环境中重要的安全机制

搭建 kdc 并且创建测试用户，并且使用 kinit 验证
zookeeper 集成 kerberos
hdfs 集成 kerberos (NameNode + DataNode)
yarn 集成 kerberos (ResourceManager + NodeManager)
hive metastore 集成 kerberos
spark thrift server 集成 kerberos
kafka 集成 kerberos (Kraft)
flink on yarn 集成 kerberos
dolphin scheduler 集成 kerberos
验证链路

kerberos kdc

KDC（密钥分发中心）是 kerberos 的认证服务器，后续所有的配置都依赖它存在

没有 kdc，那么 hadoop、hive、spark 的 kerberos 集成都无法验证，而且 kdc 配置简单，跑起来之后就是按部就班给各个服务生成 keytab 并且修改配置

角色分配：

node1: KDC 主服务器
node2 - node5：kerberos 客户端

关键信息规划:

项目	值	说明
Realm	HADOOP.COM	域名，相当于“认证域”，生产用公司域名，测试自定义即可
KDC 主机	node1	KDC 服务器所在节点
Admin 主体	hdfs/admin	管理员账号，用现有的 hdfs 用户
域内主机	node1 ~ node5	需要参与认证的所有节点

在 node1 上安装 KDC 服务

bash

# 安装 Kerberos 服务端和客户端
sudo apt update
sudo apt install -y krb5-kdc krb5-admin-server krb5-user

# 安装过程中会弹出配置界面，按以下填写：
# Default Kerberos version 5 realm: HADOOP.COM
# Kerberos servers for your realm: node1
# Administrative server for your Kerberos realm: node1

若填写错误，后续可编辑 /etc/krb5.conf 做配置

配置 /etc/krb5.conf

修改为以下内容，之前的默认配置全部删除不要，注意，这个配置不需要注释，所以真实不要加上这个注释

bash

[libdefaults]
    # 允许 Kerberos 协议层面的时间同步校准
    kdc_timesync = 1
    # 默认的认证域，不指定时自动使用这个
    default_realm = HADOOP.COM
    # 是否通过 DNS 查找 Realm，内网测试关闭
    dns_lookup_realm = false
    # 是否通过 DNS 查找 KDC 地址，内网测试关闭
    dns_lookup_kdc = false
    # 票据有效期，24小时
    ticket_lifetime = 24h
    # 票据可续期的最大时长，7天，之后必须重新 kinit
    renew_lifetime = 7d
    # 票据是否可转发（SSH 跳板需要），后续 SSH 跳板、Spark 任务提交都需要
    forwardable = true
    # 是否反向解析主机名，关闭可避免 DNS 问题，避免 DNS 没配好导致认证失败
    rdns = false

[realms]
    HADOOP.COM = {
        # KDC 服务器的地址和端口，88 是标准端口
        kdc = node1:88
        # 管理服务器的地址和端口，749 是标准端口，用于 kadmin 远程管理
        admin_server = node1:749
        # 默认域名
        default_domain = HADOOP.COM
    }

[domain_realm]
    # 将域名映射到 Realm，自动映射，不用每个节点单独配置
    .hadoop.com = HADOOP.COM
    # 精确域名映射
    hadoop.com = HADOOP.COM

[logging]
    kdc = FILE:/var/log/krb5kdc.log
    admin_server = FILE:/var/log/kadmin.log
    default = FILE:/var/log/krb5lib.log

仅仅 node1 这个 KDC 服务器节点配置 /etc/krb5kdc/kdc.conf

注意，配置文件不支持注释，所以真实配置文件中不要加注释

bash

[kdcdefaults]
    # KDC 监听的端口号，88 是 Kerberos 标准端口（IANA 分配给 Kerberos 的官方端口）
    kdc_ports = 88

[realms]
    HADOOP.COM = {
        # KDC 数据库文件的存放路径
        # 这个文件里存着所有用户主体（Principal）和密码的哈希值，是 KDC 的核心数据文件
        database_name = /var/lib/krb5kdc/principal

        # KDC 自己的管理员 keytab 文件路径
        # keytab 相当于密码文件，KDC 自己也需要用这个文件来认证自己的身份
        admin_keytab = FILE:/etc/krb5kdc/kadm5.keytab

        # 管理员 ACL（访问控制列表）文件路径
        # 这个文件决定了哪些 Principal 有权限远程管理 KDC（创建主体、修改密码等）
        acl_file = /etc/krb5kdc/kadm5.acl

        # 主密钥缓存文件路径
        # 初始化 KDC 数据库时，会设置一个 Master Password，它被缓存到这个文件里
        # 有了这个文件，KDC 启动时不需要人工输入密码，自动解密数据库
        key_stash_file = /etc/krb5kdc/stash

        # KDC 监听的端口号（与 [kdcdefaults] 中一致）
        kdc_ports = 88

        # 票据的最大有效期
        # 一个 TGT（票据授予票据）最多能活多久，超过这个时间必须重新 kinit
        # 24h 表示 24 小时，生产环境通常设 24h，太长了不安全，太短了频繁重认证
        max_life = 24h

        # 票据的最大可续期时长
        # 如果票据过期了，但还没超过这个时间，可以拿旧票据去续期，不用重新输入密码
        # 7d 表示 7 天，超过 7 天就必须重新 kinit
        max_renewable_life = 7d

        # 支持的加密算法列表
        # 必须显式指定，否则 JDK 8 可能降级到不安全的 DES 算法（已经被破解）
        # aes256-cts 是目前最安全的，aes128-cts 是备用方案
        # :normal 表示这是常规加密，不是特殊用途的加密
        supported_enctypes = aes256-cts:normal aes128-cts:normal

        # 默认的主体标志
        # +preauth 表示启用“预认证”（Pre-authentication）
        # 简单说：客户端必须先证明自己知道密码，才能申请票据
        # 这能防止攻击者离线暴力破解用户的密码哈希
        default_principal_flags = +preauth
    }

在 KDC 服务器节点上配置管理员权限

bash

sudo vim /etc/krb5kdc/kadm5.acl
# 内容如下，表示所有 /admin 结尾的主题都有完整管理权限
*/admin@HADOOP.COM    *

KDC 服务器节点上初始化 KDC 数据库

bash

# 创建 KDC 数据库，设置主密码（请记住，后续需用到），这里设置为了 `hdfs123`
sudo krb5_newrealm

KDC 服务器节点上启动 KDC 服务

bash

# 启动 KDC 服务
sudo systemctl enable krb5-kdc
sudo systemctl start krb5-kdc

# 启动管理服务
sudo systemctl enable krb5-admin-server
sudo systemctl start krb5-admin-server

# 检查服务状态
sudo systemctl status krb5-kdc
sudo systemctl status krb5-admin-server

KDC 服务器节点上创建管理员主体

bash

# 进入 kadmin.local 交互式命令行
sudo kadmin.local

# 在 kadmin 命令行中执行：
addprinc hdfs/admin
# 输入密码两次（建议设为 hdfs123，测试用）

addprinc root/admin
# 输入密码两次

# 查看已创建的主体
listprincs

# 退出
quit

验证 KDC 是否正常工作

bash

# 获取 hdfs/admin 的 TGT（票据授予票据）
kinit hdfs/admin
# 输入密码

# 查看当前持有的票据
# 如果 klist 显示了票据信息，说明 KDC 搭建成功。
klist

# 销毁当前票据
kdestroy

bash

hdfs@node1:/opt/module/flink-1.17.2/conf$ sudo kadmin.local -q "listprincs"
Authenticating as principal root/admin@HADOOP.COM with password.
K/M@HADOOP.COM
hdfs/admin@HADOOP.COM
kadmin/admin@HADOOP.COM
kadmin/changepw@HADOOP.COM
krbtgt/HADOOP.COM@HADOOP.COM
root/admin@HADOOP.COM
hdfs@node1:/opt/module/flink-1.17.2/conf$

主体	用途
K/M@HADOOP.COM	KDC 主密钥主体，自动创建，不用管
hdfs/admin@HADOOP.COM	管理员主体，后续所有 Kerberos 管理都用它
kadmin/admin@HADOOP.COM	KDC管理服务自己的主体，自动创建
kadmin/changepw@HADOOP.COM	密码修改服务主体，自动创建
krbtgt/HADOOP.COM@HADOOP.COM	TGT 签发主体，KDC 核心，自动创建
root/admin@HADOOP.COM	备用管理员主体

验证 kdc 是否正常工作

bash

# 获取 hdfs/admin 的 TGT 票据
kinit hdfs/admin

# 查看当前持有的票据
klist

# 销毁当前票据
kdestroy

在 node2 - node5 上安装 kerberos client
bash
```
# 在 node2 ~ node5 上分别执行
sudo apt update
sudo apt install -y krb5-user
```
安装过程中会弹出配置界面，按以下填写：
Default Kerberos version 5 realm: HADOOP.COM
Kerberos servers for your realm: node1
Administrative server for your Kerberos realm: node1
或者可以先跳过，之后直接下发 /etc/krb5.conf 到各个节点
同步 /etc/krb5.conf 配置到所有节点
在每个客户端上分别验证
bash
```
kinit hdfs/admin
# 输入密码

klist
kdestroy
```
验证完毕后，服务就已经装完了，下一步就是集成

Zookeeper 集成 Kerberos

在 KDC 服务器上执行

bash

# 进入 kdadmin.local
sudo kadmin.local

# 在交互式命令行中，为每个 zk 节点创建主体 principal
addprinc -randkey zookeeper/node1@HADOOP.COM
addprinc -randkey zookeeper/node2@HADOOP.COM
addprinc -randkey zookeeper/node3@HADOOP.COM

# 导出 keytab 文件
ktadd -k /tmp/zookeeper-node1.keytab zookeeper/node1@HADOOP.COM
ktadd -k /tmp/zookeeper-node2.keytab zookeeper/node2@HADOOP.COM
ktadd -k /tmp/zookeeper-node3.keytab zookeeper/node3@HADOOP.COM

# 退出
quit

-randkey：随机生成密钥（比手动输入密码更安全）

zookeeper/node1：主体的命名格式为服务名/主机名

将 keytab 分发给对应的各个节点

bash

sudo xcall all mkdir -p /etc/security/keytabs

# 分发给各个 zookeeper 节点
sudo scp /tmp/zookeeper-node1.keytab node1:/etc/security/keytabs/zookeeper.keytab
sudo scp /tmp/zookeeper-node2.keytab node2:/etc/security/keytabs/zookeeper.keytab
sudo scp /tmp/zookeeper-node3.keytab node3:/etc/security/keytabs/zookeeper.keytab

# 修改权限
sudo chown -R hdfs:hadoop /etc/security/keytabs

# 文件必须是 400，否则会报错
sudo chmod 400 /etc/security/keytabs/zookeeper.keytab

配置 zookeeper JAAS 配置认证文件

bash

sudo vim $ZOOKEEPER/conf/zk_server_jaas.conf

内容如下，注意：这里的 principal 给到的是 node1 主体，而每个 zookeeper 节点上都需要进行修改其为对应的主体，比如 zookeeper/node2@HADOOP.COM zookeeper/node3@HADOOP.COM

bash

Server {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/zookeeper.keytab"
    storeKey=true
    useTicketCache=false
    principal="zookeeper/node1@HADOOP.COM";
};

Client {
    com.sun.security.auth.module.Krb5LoginModule required
    useKeyTab=true
    keyTab="/etc/security/keytabs/zookeeper.keytab"
    principal="zookeeper/node1@HADOOP.COM";
};

在 zookeeper 中启用临时性的 zk_server_jaas.conf

bash

sudo vim $ZOOKEEPER_HOME/conf/zookeeper-env.sh

内容如下，SERVER_JVMFLAGS 和 CLIENT_JVMFLAGS 为方便调试使用

bash

source /etc/profile
export SERVER_JVMFLAGS="-Djava.security.auth.login.config=${ZOOKEEPER_HOME}/conf/zk_server_jaas.conf"
export CLIENT_JVMFLAGS="-Djava.security.auth.login.config=${ZOOKEEPER_HOME}/conf/zk_server_jaas.conf"
export SERVER_JVMFLAGS="$SERVER_JVMFLAGS -Dsun.security.krb5.debug=true"
export CLIENT_JVMFLAGS="$CLIENT_JVMFLAGS -Dsun.security.krb5.debug=true"

这里的配置文件必须和之前的 $ZOOKEEPER/conf/zk_server_jaas.conf 路径一致

bash

sudo xsync node1 node2 node3 /opt/module/apache-zookeeper-3.8.6-bin/conf/zookeeper-env.sh
xcall node1 node2 node3 "sudo chown hdfs:hadoop /opt/module/apache-zookeeper-3.8.6-bin/conf/zookeeper-env.sh"

zoo.cfg 为

text

dataDir=/opt/data/zookeeper
server.1=node1:2888:3888
server.2=node2:2888:3888
server.3=node3:2888:3888
# the port at which the clients will connect
clientPort=2181

# ==================== Kerberos 认证配置 ====================
# 启用 Kerberos 认证，每个节点上都写 authProvider.1 即可
authProvider.1=org.apache.zookeeper.server.auth.SASLAuthenticationProvider
jaasLoginRenew=3600000
kerberos.removeHostFromPrincipal=true
kerberos.removeRealmFromPrincipal=true

启动 zookeeper hadoop-ha-manage.sh start-zookeeper

分别在 zookeeper 节点上进行如下内容检验，若能执行，则说明 kerberos 认证已生效

bash

# 先获取 Kerberos 票据
kinit hdfs/admin

# 连接 ZK
$ZOOKEEPER_HOME/bin/zkCli.sh -server node1:2181

# 在 ZK 客户端中执行
ls /

# 退出
quit

HADOOP 集成 kerberos

HDFS 集成 kerberos

在 KDC 服务器上执行

bash

sudo kadmin.local

# 为 NameNode 生成 keytab（包含两个 NameNode 节点的 principal）
addprinc -randkey hdfs-nn/node1@HADOOP.COM
addprinc -randkey hdfs-nn/node2@HADOOP.COM
ktadd -k /etc/security/keytabs/hdfs-nn.keytab hdfs-nn/node1@HADOOP.COM hdfs-nn/node2@HADOOP.COM

# 为 DataNode 生成 keytab（包含所有 DataNode 节点）
addprinc -randkey hdfs-dn/node1@HADOOP.COM
addprinc -randkey hdfs-dn/node2@HADOOP.COM
addprinc -randkey hdfs-dn/node3@HADOOP.COM
addprinc -randkey hdfs-dn/node4@HADOOP.COM
addprinc -randkey hdfs-dn/node5@HADOOP.COM
ktadd -k /etc/security/keytabs/hdfs-dn.keytab hdfs-dn/node1@HADOOP.COM hdfs-dn/node2@HADOOP.COM hdfs-dn/node3@HADOOP.COM hdfs-dn/node4@HADOOP.COM hdfs-dn/node5@HADOOP.COM

# 为 JournalNode 生成 keytab（包含三个 JournalNode 节点）
addprinc -randkey hdfs-jn/node1@HADOOP.COM
addprinc -randkey hdfs-jn/node2@HADOOP.COM
addprinc -randkey hdfs-jn/node3@HADOOP.COM
ktadd -k /etc/security/keytabs/hdfs-jn.keytab hdfs-jn/node1@HADOOP.COM hdfs-jn/node2@HADOOP.COM hdfs-jn/node3@HADOOP.COM

# 为 WEB UI HTTP 生成 keytab
addprinc -randkey HTTP/node1@HADOOP.COM
addprinc -randkey HTTP/node2@HADOOP.COM
ktadd -k /etc/security/keytabs/http.keytab HTTP/node1@HADOOP.COM HTTP/node2@HADOOP.COM

quit

同步到所有节点，并给予权限

bash

sudo xsync node1 node2 node3 /etc/security/keytabs/hdfs-jn.keytab
sudo xsync node1 node2 node3 /etc/security/keytabs/hdfs-nn.keytab
sudo xsync node1 node2 /etc/security/keytabs/http.keytab
sudo xsync all ls -la /etc/security/keytabs/hdfs-dn.keytab

xcall all sudo chown hdfs:hadoop /etc/security/keytabs/hdfs-*.keytab
xcall node1 node2 "sudo chown hdfs:hadoop /etc/security/keytabs/http*.keytab"
xcall all sudo ls -la /etc/security/keytabs

给每个节点上都生成 SSL 证书，用于 HTTPS

使用 sudo 权限执行脚本，分发 SSL 证书，真实环境下可以直接使用企业内部发放的证书

#!/bin/bash
# ======================== 配置变量 ========================
CA_DIR="/etc/security/ca"
KEYSTORE_DIR="/etc/security/keytabs"
PASSWORD="hdfs123"
VALIDITY_DAYS=3650
BASE_CN="Hadoop Cluster CA"
JAVA_HOME=/opt/module/jdk1.8.0_202

NODES=("node1" "node2" "node3" "node4" "node5")

sudo mkdir -p $CA_DIR $KEYSTORE_DIR
cd $CA_DIR

# 1. 生成根 CA（如果不存在才生成，避免重复）
if [ ! -f ca.key ]; then
    echo "生成根 CA..."
    sudo openssl genrsa -out ca.key 2048
    sudo openssl req -new -x509 -days $VALIDITY_DAYS -key ca.key -out ca.crt -subj "/CN=$BASE_CN/O=Hadoop/C=CN"
else
    echo "根 CA 已存在，跳过生成"
fi

# 2. 为每个节点生成 PKCS12 格式的 keystore（直接就是 PKCS12，不再转换 JKS）
for node in "${NODES[@]}"; do
    echo "生成 $node 证书..."
    sudo openssl req -new -newkey rsa:2048 -nodes \
        -keyout $KEYSTORE_DIR/${node}.key \
        -out $CA_DIR/${node}.csr \
        -subj "/CN=$node/O=Hadoop/C=CN"

    sudo openssl x509 -req -days $VALIDITY_DAYS \
        -in $CA_DIR/${node}.csr \
        -CA ca.crt -CAkey ca.key \
        -set_serial 0x$(openssl rand -hex 8) \
        -out $KEYSTORE_DIR/${node}.crt

    # 直接生成 PKCS12 keystore（不再经过 JKS）
    sudo openssl pkcs12 -export -legacy \
        -in $KEYSTORE_DIR/${node}.crt \
        -inkey $KEYSTORE_DIR/${node}.key \
        -out $KEYSTORE_DIR/${node}.keystore.p12 \
        -password pass:$PASSWORD \
        -name $node

    rm -f $CA_DIR/${node}.csr
done

# 3. 创建 PKCS12 信任库，如果已存在则先删除 cacert 别名再导入
TRUSTSTORE="$KEYSTORE_DIR/truststore.p12"
# 如果 truststore 文件已存在，先删除旧的 cacert 条目（如果有）
if [ -f "$TRUSTSTORE" ]; then
    sudo $JAVA_HOME/bin/keytool -delete -alias cacert -keystore "$TRUSTSTORE" -storepass $PASSWORD -storetype PKCS12 2>/dev/null
fi
# 导入根 CA 证书
sudo $JAVA_HOME/bin/keytool -import -trustcacerts \
    -alias cacert \
    -file ca.crt \
    -keystore "$TRUSTSTORE" \
    -storepass $PASSWORD \
    -storetype PKCS12 \
    -noprompt

# 4. 设置权限
sudo chown -R hdfs:hdfs $KEYSTORE_DIR
sudo chmod 640 $KEYSTORE_DIR/*.p12 $KEYSTORE_DIR/*.key $KEYSTORE_DIR/*.crt

echo "✅ 所有证书生成完成（PKCS12 格式）"
echo "各节点的 keystore 文件："
for node in "${NODES[@]}"; do
    echo "   $node : $KEYSTORE_DIR/${node}.keystore.p12"
done
echo "所有节点共用 truststore： $TRUSTSTORE"

设置权限

bash

xcall all sudo chown hdfs:hadoop /etc/security/keytabs/truststore.p12
xcall all sudo chown hdfs:hadoop /etc/security/keytabs/keystore.p12

修改配置文件

core-site.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
    Licensed under the Apache License, Version 2.0 (the "License");
    you may not use this file except in compliance with the License.
    You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

    Unless required by applicable law or agreed to in writing, software
    distributed under the License is distributed on an "AS IS" BASIS,
    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    See the License for the specific language governing permissions and
    limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->
<configuration>
    <!-- 定义 HDFS 的逻辑名称 -->
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://hadoop</value>
    </property>

    <!-- 数据目录 给定之前准备好的目录，生产需要指定到独立磁盘 -->
    <property>
        <name>hadoop.tmp.dir</name>
        <value>/opt/data/hadoop/hdfs</value>
    </property>

    <!-- ZooKeeper 集群地址 给定之前配置 zookeeper 的节点 用于 HA 协调 -->
    <property>
        <name>ha.zookeeper.quorum</name>
        <value>node1:2181,node2:2181,node3:2181</value>
    </property>

    <!-- 开启 hdfs 的代理身份 -->
    <property>
        <name>hadoop.proxyuser.hdfs.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.hdfs.groups</name>
        <value>*</value>
    </property>
    <!-- 允许 HTTP 用户代理所有主机和用户组 -->
    <property>
        <name>hadoop.proxyuser.HTTP.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.HTTP.groups</name>
        <value>*</value>
    </property>
    <!-- 允许 spark 用户代理任何主机上的任何用户 -->
    <property>
        <name>hadoop.proxyuser.spark.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.spark.groups</name>
        <value>*</value>
    </property>
    <!-- 用户映射规则：将 HTTP 主体映射为 hdfs 用户 -->
    <property>
        <name>hadoop.security.auth_to_local</name>
        <value>
            RULE:[2:$1/$2@$0](hdfs/.*@HADOOP.COM)s/.*/hdfs/
            RULE:[2:$1/$2@$0](HTTP/.*@HADOOP.COM)s/.*/hdfs/
            RULE:[2:$1/$2@$0](yarn/.*@HADOOP.COM)s/.*/yarn/
            RULE:[2:$1/$2@$0](mapred/.*@HADOOP.COM)s/.*/mapred/
            RULE:[2:$1/$2@$0](jn/.*@HADOOP.COM)s/.*/hdfs/
            RULE:[2:$1/$2@$0](spark/.*@HADOOP.COM)s/.*/spark/
            DEFAULT
        </value>
    </property>

    <!-- 开启回收站，保留 1 天 -->
    <property>
        <name>fs.trash.interval</name>
        <value>1440</value>
    </property>

    <!-- Kerberos 认证 -->
    <property>
        <name>hadoop.security.authentication</name>
        <value>kerberos</value>
    </property>
    <property>
        <name>hadoop.security.authorization</name>
        <value>true</value>
    </property>

    <!-- 允许 hdfs 用户代理其他用户 -->
    <property>
        <name>hadoop.proxyuser.hdfs.hosts</name>
        <value>*</value>
    </property>
    <property>
        <name>hadoop.proxyuser.hdfs.groups</name>
        <value>*</value>
    </property>

    <!-- 启用 SSL -->
    <property>
        <name>hadoop.ssl.enabled</name>
        <value>true</value>
    </property>
    <property>
        <name>hadoop.ssl.server.conf</name>
        <value>ssl-server.xml</value>
    </property>
    <property>
        <name>hadoop.ssl.client.conf</name>
        <value>ssl-client.xml</value>
    </property>

</configuration>

hdfs-site.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<?xml-stylesheet type="text/xsl" href="configuration.xsl"?>
<!--
Licensed under the Apache License, Version 2.0 (the "License");
you may not use this file except in compliance with the License.
You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License. See accompanying LICENSE file.
-->

<!-- Put site-specific property overrides in this file. -->
<configuration>

<!-- ==================== 基础配置 ==================== -->

<!-- 副本数 -->
<property>
    <name>dfs.replication</name>
    <value>3</value>
</property>

<!-- 定义 Nameservice ID (需与 core-site.xml 中的 fs.defaultFS 对应) -->
<property>
    <name>dfs.nameservices</name>
    <value>hadoop</value>
</property>

<!-- 定义两个 NameNode 的别名 (nn1, nn2) -->
<property>
    <name>dfs.ha.namenodes.hadoop</name>
    <value>nn1,nn2</value>
</property>

<!-- nn 的 RPC 地址 -->
<property>
    <name>dfs.namenode.rpc-address.hadoop.nn1</name>
    <value>node1:8020</value>
</property>
<property>
    <name>dfs.namenode.rpc-address.hadoop.nn2</name>
    <value>node2:8020</value>
</property>

<!-- 集群 NameNode 元数据在 JournalNode 存放位置 目录 hadoop 为集群 id -->
<property>
    <name>dfs.namenode.shared.edits.dir</name>
    <value>qjournal://node1:8485;node2:8485;node3:8485/hadoop</value>
</property>

<!-- NameNode 元数据在 JournalNode 的物理磁盘存放位置，生产需要指定独立磁盘 -->
<property>
    <name>dfs.journalnode.edits.dir</name>
    <value>/opt/data/hadoop/journal</value>
</property>

<!-- 配置自动故障转移 -->
<property>
    <name>dfs.ha.automatic-failover.enabled</name>
    <value>true</value>
</property>

<!-- 客户端故障转移代理 -->
<property>
    <name>dfs.client.failover.proxy.provider.hadoop</name>
    <value>org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider</value>
</property>

<!--
使用 SSH 隔离防止 NameNode 脑裂
shell 用于兜底（比如机器崩溃无法 ssh 过去的时候）
注意 sshfence 和 shell 都需要新启动一行，用于表示为一个列表
arping 需要提前安装 iputils-arping 并且位置可能不同，需要谨慎，另外网络可能不同，需要修改
意思是 arping 进行流量转发，将 target_host 的流量全都转移到自己身上来，这样可以防止脑裂
-->
<property>
    <name>dfs.ha.fencing.methods</name>
    <value>
sshfence
shell(/usr/bin/arping -D -c 3 -A ${target_host})
    </value>
</property>
<property>
    <name>dfs.ha.fencing.ssh.private-key-files</name>
    <value>/home/hdfs/.ssh/id_rsa</value>
</property>


<!-- ==================== NameNode Web UI (HTTPS 模式) ==================== -->
<!-- HTTP 策略 -->
<property>
    <name>dfs.http.policy</name>
    <value>HTTPS_ONLY</value>
</property>

<!-- NameNode HTTPS 地址 -->
<property>
    <name>dfs.namenode.https-address.hadoop.nn1</name>
    <value>node1:9872</value>
</property>
<property>
    <name>dfs.namenode.https-address.hadoop.nn2</name>
    <value>node2:9872</value>
</property>

<!-- ==================== DataNode 安全配置 ==================== -->
<!-- DataNode 数据传输监听的地址和端口 -->
<property>
    <name>dfs.datanode.address</name>
    <value>0.0.0.0:9866</value>
</property>

<!-- DataNode IPC 地址 -->
<property>
    <name>dfs.datanode.ipc.address</name>
    <value>0.0.0.0:9867</value>
</property>

<!-- DataNode HTTPS 地址 -->
<property>
    <name>dfs.datanode.https.address</name>
    <value>0.0.0.0:9865</value>
</property>
<!-- DataNode HTTP 地址（HTTPS_ONLY 下可保留但不会被使用） -->
<property>
    <name>dfs.datanode.http.address</name>
    <value>0.0.0.0:9864</value>
</property>

<!-- DataNode 数据目录权限 -->
<property>
    <name>dfs.datanode.data.dir.perm</name>
    <value>700</value>
</property>

<!-- 数据传输保护级别 （authentication 仅认证 integrity 数据完整性 privacy 额外加密） -->
<property>
    <name>dfs.data.transfer.protection</name>
    <value>integrity</value>
</property>

<!-- ==================== 启用 WebHDFS ==================== -->
<property>
    <name>dfs.webhdfs.enabled</name>
    <value>true</value>
</property>

<!-- ==================== Kerberos 认证 ==================== -->
<!-- NameNode Kerberos 主体 -->
<property>
    <name>dfs.namenode.kerberos.principal</name>
    <value>hdfs-nn/_HOST@HADOOP.COM</value>
</property>

<!-- NameNode Keytab 文件 -->
<property>
    <name>dfs.namenode.keytab.file</name>
    <value>/etc/security/keytabs/hdfs-nn.keytab</value>
</property>

<!-- DataNode Kerberos 主体 -->
<property>
    <name>dfs.datanode.kerberos.principal</name>
    <value>hdfs-dn/_HOST@HADOOP.COM</value>
</property>

<!-- DataNode Keytab 文件 -->
<property>
    <name>dfs.datanode.keytab.file</name>
    <value>/etc/security/keytabs/hdfs-dn.keytab</value>
</property>

<!-- JournalNode Kerberos 主体 -->
<property>
    <name>dfs.journalnode.kerberos.principal</name>
    <value>hdfs-jn/_HOST@HADOOP.COM</value>
</property>

<!-- JournalNode Keytab 文件 -->
<property>
    <name>dfs.journalnode.keytab.file</name>
    <value>/etc/security/keytabs/hdfs-jn.keytab</value>
</property>

<!-- Web UI Kerberos 认证 -->
<property>
    <name>dfs.web.authentication.kerberos.principal</name>
    <value>HTTP/_HOST@HADOOP.COM</value>
</property>
<property>
    <name>dfs.web.authentication.kerberos.keytab</name>
    <value>/etc/security/keytabs/http.keytab</value>
</property>

<!-- 块访问令牌 -->
<property>
    <name>dfs.block.access.token.enable</name>
    <value>true</value>
</property>

<!-- NameNode WebUI Kerberos 认证（只对 NameNode 生效） -->
<property>
    <name>dfs.namenode.http-authentication.type</name>
    <value>kerberos</value>
</property>
<property>
    <name>dfs.namenode.http-authentication.kerberos.principal</name>
    <value>HTTP/_HOST@HADOOP.COM</value>
</property>
<property>
    <name>dfs.namenode.http-authentication.kerberos.keytab</name>
    <value>/etc/security/keytabs/http.keytab</value>
</property>
<property>
    <name>dfs.namenode.http-authentication.token.validity</name>
    <value>36000</value>
</property>

</configuration>

ssl-server.xml

xml

<configuration>
    <property>
        <name>ssl.server.keystore.location</name>
        <value>/etc/security/keytabs/keystore.p12</value>
    </property>
    <property>
        <name>ssl.server.keystore.password</name>
        <value>hdfs123</value>
    </property>
    <property>
        <name>ssl.server.keystore.keypassword</name>
        <value>hdfs123</value>
    </property>
    <property>
        <name>ssl.server.keystore.type</name>
        <value>pkcs12</value>
    </property>
    <property>
        <name>ssl.server.truststore.location</name>
        <value>/etc/security/keytabs/truststore.p12</value>
    </property>
    <property>
        <name>ssl.server.truststore.password</name>
        <value>hdfs123</value>
    </property>
    <property>
        <name>ssl.server.truststore.type</name>
        <value>pkcs12</value>
    </property>
</configuration>

ssl-client.xml

xml

<configuration>
    <property>
        <name>ssl.client.truststore.location</name>
        <value>/etc/security/keytabs/truststore.p12</value>
    </property>
    <property>
        <name>ssl.client.truststore.password</name>
        <value>hdfs123</value>
    </property>
    <property>
        <name>ssl.client.truststore.type</name>
        <value>pkcs12</value>
    </property>
</configuration>

重启 HDFS 集群
验证 kerberos 认证
在 WEB 页面上查看 HDFS
注意端口已经改为了 https://node1:9872/，但是由于 kerberos 认证的原因，直接访问会出现 Failed to obtain user group information: java.io.IOException: Security enabled but user not authenticated by filter
所以访问直接给一个参数 ?user.name=hdfs，也就是 https://node1:9872/?user.name=hdfs 这样可以直接访问，但是需要注意，这样会把删除权限也给到，需要注意这一点

Yarn

创建 yarn 相关 principal

bash

sudo kadmin.local

# ResourceManager principal（运行在 node1 和 node2）
addprinc -randkey yarn-rm/node1@HADOOP.COM
addprinc -randkey yarn-rm/node2@HADOOP.COM

# NodeManager principal（运行在所有节点 node1~node5）
addprinc -randkey yarn-nm/node1@HADOOP.COM
addprinc -randkey yarn-nm/node2@HADOOP.COM
addprinc -randkey yarn-nm/node3@HADOOP.COM
addprinc -randkey yarn-nm/node4@HADOOP.COM
addprinc -randkey yarn-nm/node5@HADOOP.COM

# 生成 keytab（可以单独文件，也可以合并）
ktadd -k /etc/security/keytabs/yarn-rm.keytab yarn-rm/node1@HADOOP.COM yarn-rm/node2@HADOOP.COM
ktadd -k /etc/security/keytabs/yarn-nm.keytab yarn-nm/node1@HADOOP.COM yarn-nm/node2@HADOOP.COM yarn-nm/node3@HADOOP.COM yarn-nm/node4@HADOOP.COM yarn-nm/node5@HADOOP.COM

quit

同步到所有节点，并给予权限

bash

sudo xsync node1 node2 node3 /etc/security/keytabs/yarn-rm.keytab
sudo xsync all /etc/security/keytabs/yarn-nm.keytab

xcall node1 node2 node3 "sudo ls -la /etc/security/keytabs/yarn-rm.keytab"
xcall all "sudo ls -la /etc/security/keytabs/yarn-nm.keytab"

xcall all sudo chown hdfs:hadoop /etc/security/keytabs/yarn-*.keytab
xcall all sudo ls -la /etc/security/keytabs

修改配置文件

yarn-site.xml

xml

<?xml version="1.0"?>
<!--
    Licensed under the Apache License, Version 2.0 (the "License");
    you may not use this file except in compliance with the License.
    You may obtain a copy of the License at

    http://www.apache.org/licenses/LICENSE-2.0

    Unless required by applicable law or agreed to in writing, software
    distributed under the License is distributed on an "AS IS" BASIS,
    WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
    See the License for the specific language governing permissions and
    limitations under the License. See accompanying LICENSE file.
-->
<configuration>
    <!-- 开启 YARN HA -->
    <property>
        <name>yarn.resourcemanager.ha.enabled</name>
        <value>true</value>
    </property>

    <!-- 定义 RM 集群 ID -->
    <property>
        <name>yarn.resourcemanager.cluster-id</name>
        <value>yarn-cluster</value>
    </property>

    <!-- 定义 RM 节点 ID -->
    <property>
        <name>yarn.resourcemanager.ha.rm-ids</name>
        <value>rm1,rm2</value>
    </property>

    <!-- 指定 RM 地址 -->
    <property>
        <name>yarn.resourcemanager.hostname.rm1</name>
        <value>node1</value>
    </property>
    <property>
        <name>yarn.resourcemanager.hostname.rm2</name>
        <value>node2</value>
    </property>

    <!-- 为 rm1 指定 Web UI 地址 -->
    <property>
        <name>yarn.resourcemanager.webapp.address.rm1</name>
        <value>node1:8088</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.https.address.rm1</name>
        <value>node1:8090</value>
    </property>

    <!-- 为 rm2 指定 Web UI 地址 -->
    <property>
        <name>yarn.resourcemanager.webapp.https.address.rm2</name>
        <value>node2:8090</value>
    </property>
    <property>
        <name>yarn.resourcemanager.webapp.address.rm2</name>
        <value>node2:8088</value>
    </property>

    <!-- 指定 ZK 地址 -->
    <property>
        <name>yarn.resourcemanager.zk-address</name>
        <value>node1:2181,node2:2181,node3:2181</value>
    </property>

    <!--启用自动恢复-->
    <property>
        <name>yarn.resourcemanager.recovery.enabled</name>
        <value>true</value>
    </property>

    <!--指定 resourcemanager 的状态信息存储在zookeeper集群-->
    <property>
        <name>yarn.resourcemanager.store.class</name>
        <value>org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore</value>
    </property>

    <!-- 环境白名单 -->
    <property>
        <name>yarn.nodemanager.env-whitelist</name>
        <value>JAVA_HOME,HADOOP_COMMON_HOME,HADOOP_HDFS_HOME,HADOOP_CONF_DIR,CLASSPATH_PREPEND_DISTCACHE,HADOOP_YARN_HOME,HADOOP_MAPRED_HOME,HADOOP_HOME,PATH,LANG,TZ,FLINK_HOME</value>
    </property>

    <!-- 辅助服务：mapreduce_shuffle -->
    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <property>
        <name>yarn.nodemanager.aux-services.mapreduce_shuffle.class</name>
        <value>org.apache.hadoop.mapred.ShuffleHandler</value>
    </property>

    <!-- 日志聚合存储 HDFS 路径 -->
    <property>
        <name>yarn.nodemanager.remote-app-log-dir</name>
        <value>/tmp/logs</value>
    </property>

    <!-- ==================== YARN HA Kerberos 配置 ==================== -->
    <!-- ResourceManager Kerberos 认证 -->
    <property>
        <name>yarn.resourcemanager.principal</name>
        <value>yarn-rm/_HOST@HADOOP.COM</value>
    </property>
    <property>
        <name>yarn.resourcemanager.keytab</name>
        <value>/etc/security/keytabs/yarn-rm.keytab</value>
    </property>

    <!-- NodeManager Kerberos 认证 -->
    <property>
        <name>yarn.nodemanager.principal</name>
        <value>yarn-nm/_HOST@HADOOP.COM</value>
    </property>
    <property>
        <name>yarn.nodemanager.keytab</name>
        <value>/etc/security/keytabs/yarn-nm.keytab</value>
    </property>
</configuration>

MapReduce

创建 mapreduce 相关 principal

bash

sudo kadmin.local

addprinc -randkey mapred-jhs/node1@HADOOP.COM

ktadd -k /etc/security/keytabs/mapred.keytab mapred-jhs/node1@HADOOP.COM

quit

bash

sudo xsync all mapred.keytab
xcall all "sudo chown hdfs:hadoop /etc/security/keytabs/mapred.keytab"

修改配置文件

mapred-site.xml 添加

xml

    <!-- MapReduce JobHistory Server Kerberos 认证 -->
    <property>
        <name>mapreduce.jobhistory.principal</name>
        <value>mapred-jhs/_HOST@HADOOP.COM</value>
    </property>
    <property>
        <name>mapreduce.jobhistory.keytab</name>
        <value>/etc/security/keytabs/hdfs.keytab</value>
    </property>

新的群起集群脚本

bash

#!/bin/bash

# ======================== 集群配置（按实际情况修改） ========================
NODE1="node1"
NODE2="node2"
NODE3="node3"
NODE4="node4"
NODE5="node5"

# Hadoop 角色
NN_NODES=("$NODE1" "$NODE2")            # NameNode 节点
JN_NODES=("$NODE1" "$NODE2" "$NODE3")   # JournalNode 节点
ZK_NODES=("$NODE1" "$NODE2" "$NODE3")   # ZooKeeper 节点
DN_NODES=("$NODE4" "$NODE5")            # DataNode 节点
NM_NODES=("$NODE4" "$NODE5")            # NodeManager 节点
RM_NODES=("$NODE1" "$NODE2")            # ResourceManager 节点
HS_NODE="$NODE1"                        # MapReduce JobHistoryServer 节点

# Spark 角色
SPARK_THRIFT_SERVER_NODES=("$NODE1" "$NODE2") # Spark Thrift Server 节点

# NameNode 逻辑名称（必须与 hdfs-site.xml 一致）
NN1_HOST="$NODE1"
NN1_ID="nn1"
NN2_HOST="$NODE2"
NN2_ID="nn2"

# Hive 角色
METASTORE_NODES=("$NODE1" "$NODE2")

# DolphinScheduler 角色
DS_MASTER_NODES=("$NODE1" "$NODE2")         # Master 节点
DS_API_NODES=("$NODE1" "$NODE2")            # API Server 节点
DS_ALERT_NODES=("$NODE3")                   # Alert Server 节点
DS_WORKER_NODES=("$NODE4" "$NODE5")         # Worker 节点

# Flink 角色
FLINK_NODES=("$NODE3")                       # Flink 提交节点（通常选一个即可）

# Kafka KRaft 集群所有节点
KAFKA_NODES=("$NODE3" "$NODE4" "$NODE5")

# 颜色
RED='\033[0;31m'
GREEN='\033[0;32m'
YELLOW='\033[1;33m'
NC='\033[0m'

print_msg()  { echo -e "${GREEN}[$1]${NC} $2"; }
print_warn() { echo -e "${YELLOW}[$1]${NC} $2"; }
print_error(){ echo -e "${RED}[$1]${NC} $2"; }

# SSH 执行（source /etc/profile 获取环境变量）
ssh_exec() {
    local node=$1; shift
    ssh -o StrictHostKeyChecking=no -o UserKnownHostsFile=/dev/null -o LogLevel=ERROR "$node" "
        source /etc/profile 2>/dev/null
        $*
    "
}

# ======================== ZooKeeper ========================
start_zookeeper() {
    print_msg "ZK" "启动 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh start
            else
                zkServer.sh start
            fi
        "
    done
    sleep 2
    print_msg "ZK" "ZooKeeper 启动完成"
}

stop_zookeeper() {
    print_msg "ZK" "停止 ZooKeeper..."
    for node in "${ZK_NODES[@]}"; do
        ssh_exec "$node" "
            if [ -n \"\$ZOOKEEPER_HOME\" ]; then
                \$ZOOKEEPER_HOME/bin/zkServer.sh stop
            else
                zkServer.sh stop
            fi
        "
    done
    print_msg "ZK" "ZooKeeper 已停止"
}

# ======================== HDFS ========================
start_hdfs() {
    print_msg "HDFS" "启动 HDFS 组件..."

    # 启动 JournalNode（使用 hdfs-jn.keytab，principal 为 hdfs/_HOST）
    print_msg "JN" "启动 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "
            kinit -kt /etc/security/keytabs/hdfs-jn.keytab hdfs-jn/$node@HADOOP.COM
            \$HADOOP_HOME/bin/hdfs --daemon start journalnode
        "
    done
    sleep 2

    # 启动 NameNode（使用 hdfs-nn.keytab）
    print_msg "NN" "启动 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "
            kinit -kt /etc/security/keytabs/hdfs-nn.keytab hdfs-nn/$node@HADOOP.COM
            \$HADOOP_HOME/bin/hdfs --daemon start namenode
        "
    done
    sleep 2

    # 启动 ZKFC（使用 NameNode 的 keytab 即可，因为 ZKFC 复用 NameNode 的 principal）
    print_msg "ZKFC" "启动 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "
            kinit -kt /etc/security/keytabs/hdfs-nn.keytab hdfs-nn/$node@HADOOP.COM
            \$HADOOP_HOME/bin/hdfs --daemon start zkfc
        "
    done
    sleep 2

    # 启动 DataNode（使用 hdfs-dn.keytab）
    print_msg "DN" "启动 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "
            kinit -kt /etc/security/keytabs/hdfs-dn.keytab hdfs-dn/$node@HADOOP.COM
            \$HADOOP_HOME/bin/hdfs --daemon start datanode
        "
    done
    sleep 2

    print_msg "HDFS" "HDFS 组件启动完成"
}

stop_hdfs() {
    print_msg "HDFS" "停止 HDFS 组件..."
    print_msg "ZKFC" "停止 ZKFC..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop zkfc"
    done

    print_msg "NN" "停止 NameNode..."
    for node in "${NN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop namenode"
    done

    print_msg "DN" "停止 DataNode..."
    for node in "${DN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop datanode"
    done

    print_msg "JN" "停止 JournalNode..."
    for node in "${JN_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/hdfs --daemon stop journalnode"
    done

    print_msg "HDFS" "HDFS 组件已停止"
}

# ======================== YARN ========================
start_yarn() {
    print_msg "YARN" "启动 YARN 组件..."
    print_msg "RM" "启动 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start resourcemanager"
    done
    sleep 2

    print_msg "NM" "启动 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon start nodemanager"
    done
    sleep 2
    print_msg "YARN" "YARN 组件启动完成"
}

stop_yarn() {
    print_msg "YARN" "停止 YARN 组件..."
    print_msg "RM" "停止 ResourceManager..."
    for node in "${RM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop resourcemanager"
    done

    print_msg "NM" "停止 NodeManager..."
    for node in "${NM_NODES[@]}"; do
        ssh_exec "$node" "\$HADOOP_HOME/bin/yarn --daemon stop nodemanager"
    done
    print_msg "YARN" "YARN 组件已停止"
}

# ======================== MapReduce HistoryServer ========================
start_historyserver() {
    print_msg "HS" "启动 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon start historyserver"
    print_msg "HS" "HistoryServer 启动完成"
}

stop_historyserver() {
    print_msg "HS" "停止 MapReduce HistoryServer..."
    ssh_exec "$HS_NODE" "\$HADOOP_HOME/bin/mapred --daemon stop historyserver"
    print_msg "HS" "HistoryServer 已停止"
}

# ======================== Hive Metastore ========================
start_metastore() {
    print_msg "METASTORE" "启动 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "
            kinit -kt /etc/security/keytabs/hive.keytab hive/$node@HADOOP.COM
            nohup \$HIVE_HOME/bin/hive --service metastore >/dev/null 2>&1 &
        "
    done
    sleep 4
    print_msg "METASTORE" "Metastore 启动完成"
}

stop_metastore() {
    print_msg "METASTORE" "停止 Metastore..."
    for node in "${METASTORE_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.hadoop.hive.metastore.HiveMetaStore'"
    done
    print_msg "METASTORE" "Metastore 已停止"
}

# ======================== Spark ========================
start_spark_thrift_server() {
    print_msg "SPARK THRIFT" "启动 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "
            kinit -kt /etc/security/keytabs/spark.keytab spark/$node@HADOOP.COM
            nohup \$SPARK_HOME/sbin/start-thriftserver.sh \
                --master yarn \
                --deploy-mode client \
                --principal spark/$node@HADOOP.COM \
                --keytab /etc/security/keytabs/spark.keytab \
                --conf spark.driver.extraJavaOptions=-Dsun.security.krb5.debug=true \
                --hiveconf hive.server2.thrift.port=10000 \
                --hiveconf hive.server2.thrift.bind.host=0.0.0.0 >/dev/null 2>&1 &
        "
        sleep 3
    done
    sleep 5
    print_msg "SPARK THRIFT" "Spark Thrift Server 启动完成"
}

stop_spark_thrift_server() {
    print_msg "SPARK THRIFT" "停止 Spark Thrift Server..."
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        ssh_exec "$node" "pkill -f 'org.apache.spark.sql.hive.thriftserver.HiveThriftServer2'"
    done
    print_msg "SPARK THRIFT" "Spark Thrift Server 已停止"
}

# ======================== DolphinScheduler ========================
start_ds_master() {
    print_msg "DS-MASTER" "启动 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start master-server"
    done
    sleep 2
    print_msg "DS-MASTER" "Master 启动完成"
}

stop_ds_master() {
    print_msg "DS-MASTER" "停止 DolphinScheduler Master..."
    for node in "${DS_MASTER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop master-server"
    done
    print_msg "DS-MASTER" "Master 已停止"
}

start_ds_api() {
    print_msg "DS-API" "启动 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start api-server"
    done
    sleep 2
    print_msg "DS-API" "API Server 启动完成"
}

stop_ds_api() {
    print_msg "DS-API" "停止 DolphinScheduler API Server..."
    for node in "${DS_API_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop api-server"
    done
    print_msg "DS-API" "API Server 已停止"
}

start_ds_alert() {
    print_msg "DS-ALERT" "启动 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start alert-server"
    done
    sleep 2
    print_msg "DS-ALERT" "Alert Server 启动完成"
}

stop_ds_alert() {
    print_msg "DS-ALERT" "停止 DolphinScheduler Alert Server..."
    for node in "${DS_ALERT_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop alert-server"
    done
    print_msg "DS-ALERT" "Alert Server 已停止"
}

start_ds_worker() {
    print_msg "DS-WORKER" "启动 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh start worker-server"
    done
    sleep 2
    print_msg "DS-WORKER" "Worker 启动完成"
}

stop_ds_worker() {
    print_msg "DS-WORKER" "停止 DolphinScheduler Worker..."
    for node in "${DS_WORKER_NODES[@]}"; do
        ssh_exec "$node" "\$DS_HOME/bin/dolphinscheduler-daemon.sh stop worker-server"
    done
    print_msg "DS-WORKER" "Worker 已停止"
}

# ======================== Flink on YARN ========================
start_flink() {
    print_msg "FLINK" "启动 Flink YARN Session..."

    # 检查是否已经存在运行中的 Flink Session
    existing=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster" | awk '{print $1}')
    if [ -n "$existing" ]; then
        print_warn "FLINK" "Flink YARN Session 已在运行中 (Application ID: $existing)，跳过启动"
        return
    fi

    # 提交 Flink YARN Session
    ssh_exec "${FLINK_NODES[0]}" "\$FLINK_HOME/bin/yarn-session.sh -d"
    sleep 5

    # 验证是否启动成功
    app_id=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster" | awk '{print $1}')
    if [ -n "$app_id" ]; then
        print_msg "FLINK" "Flink YARN Session 启动成功 (Application ID: $app_id)"
    else
        print_error "FLINK" "Flink YARN Session 启动失败，请检查日志"
    fi
}

stop_flink() {
    print_msg "FLINK" "停止 Flink YARN Session..."

    # 查找运行中的 Flink Session
    app_id=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster" | awk '{print $1}')

    if [ -z "$app_id" ]; then
        print_warn "FLINK" "未找到运行中的 Flink YARN Session"
        return
    fi

    # 停止 Flink Session
    yarn application -kill "$app_id"
    sleep 3

    # 验证是否已停止
    still_running=$(yarn application -list -appStates RUNNING 2>/dev/null | grep "$app_id")
    if [ -z "$still_running" ]; then
        print_msg "FLINK" "Flink YARN Session 已停止 (Application ID: $app_id)"
    else
        print_error "FLINK" "Flink YARN Session 停止失败，请手动执行: yarn application -kill $app_id"
    fi
}


# ======================== DolphinScheduler ========================
start_ds() {
    start_ds_master
    start_ds_api
    start_ds_alert
    start_ds_worker
    print_msg "DS-ALL" "DolphinScheduler 全部组件启动完成"
}

stop_ds() {
    stop_ds_worker
    stop_ds_alert
    stop_ds_api
    stop_ds_master
    print_msg "DS-ALL" "DolphinScheduler 全部组件已停止"
}

# ======================== Kafka ========================
start_kafka() {
    print_msg "KAFKA" "启动 Kafka 集群..."
    for node in "${KAFKA_NODES[@]}"; do
        print_msg "KAFKA" "启动 $node 上的 Kafka Broker"
        ssh_exec "$node" "\$KAFKA_HOME/bin/kafka-server-start.sh -daemon \$KAFKA_HOME/config/kraft/server.properties"
    done
    sleep 5
    print_msg "KAFKA" "Kafka 集群启动完成"
}

stop_kafka() {
    print_msg "KAFKA" "停止 Kafka 集群..."
    for node in "${KAFKA_NODES[@]}"; do
        print_msg "KAFKA" "停止 $node 上的 Kafka Broker"
        ssh_exec "$node" "pkill -f 'kafka.Kafka'"
    done
    sleep 3
    print_msg "KAFKA" "Kafka 集群已停止"
}

# ======================== 全局启停 ========================
start_all() {
    start_zookeeper
    start_hdfs
    start_yarn
    start_historyserver
    start_metastore
    start_spark
    start_spark_thrift_server
    start_kafka
    start_flink
    start_ds
    print_msg "ALL" "全部服务已启动"
}

stop_all() {
    stop_spark_thrift_server
    stop_spark
    stop_metastore
    stop_historyserver
    stop_flink
    stop_kafka
    stop_yarn
    stop_hdfs
    stop_zookeeper
    stop_ds
    print_msg "ALL" "全部服务已停止"
}

# ======================== 状态检查 ========================
check_status() {
    echo -e "${GREEN}==================== 集群状态 ====================${NC}"

    # --- ZooKeeper ---
    print_msg "ZK" "ZooKeeper:"
    for node in "${ZK_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep QuorumPeerMain")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- HDFS ---
    print_msg "HDFS" "HDFS 进程:"
    all_hdfs_nodes=($(printf "%s\n" "${NN_NODES[@]}" "${JN_NODES[@]}" "${DN_NODES[@]}" | sort -u))
    for node in "${all_hdfs_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'NameNode|DataNode|JournalNode|DFSZKFailoverController'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 HDFS 进程"
        fi
    done

    # HA 状态
    print_msg "HA" "NameNode HA 状态:"
    nn1_state=$(ssh_exec "${NN1_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN1_ID 2>/dev/null")
    nn2_state=$(ssh_exec "${NN2_HOST}" "\$HADOOP_HOME/bin/hdfs haadmin -getServiceState $NN2_ID 2>/dev/null")
    if [ "$nn1_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${GREEN}active${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${YELLOW}standby${NC}"
    elif [ "$nn2_state" == "active" ]; then
        echo -e "  $NN1_HOST ($NN1_ID) : ${YELLOW}standby${NC}"
        echo -e "  $NN2_HOST ($NN2_ID) : ${GREEN}active${NC}"
    else
        echo -e "  ${RED}无法获取 HA 状态（集群可能未初始化）${NC}"
    fi

    # --- YARN ---
    local yarn_online=false
    print_msg "YARN" "YARN 进程:"
    all_yarn_nodes=($(printf "%s\n" "${RM_NODES[@]}" "${NM_NODES[@]}" | sort -u))
    for node in "${all_yarn_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'ResourceManager|NodeManager'")
        if [ -n "$out" ]; then
            yarn_online=true
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 YARN 进程"
        fi
    done

    # --- MapReduce HistoryServer ---
    print_msg "HS" "MapReduce HistoryServer:"
    out=$(ssh_exec "$HS_NODE" "jps 2>/dev/null | grep JobHistoryServer")
    if [ -n "$out" ]; then
        echo -e "  $HS_NODE : ${GREEN}$out${NC}"
    else
        echo -e "  $HS_NODE : ${RED}未运行${NC}"
    fi

    # --- Hive Metastore ---
    print_msg "META" "Hive Metastore:"
    for node in "${METASTORE_NODES[@]}"; do
        out=$(ssh_exec "$node" "ps -ef | grep -v grep | grep 'org.apache.hadoop.hive.metastore.HiveMetaStore'")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Spark Thrift Server ---
    print_msg "SPARK THRIFT" "Spark Thrift Server:"
    for node in "${SPARK_THRIFT_SERVER_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep SparkSubmit")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}运行中${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- Flink on YARN ---
    print_msg "FLINK" "Flink on YARN:"
    if $yarn_online; then
        flink_app=$(timeout 10 yarn application -list -appStates RUNNING 2>/dev/null | grep "FlinkCluster")
        if [ -n "$flink_app" ]; then
            app_id=$(echo "$flink_app" | awk '{print $1}')
            app_status=$(echo "$flink_app" | awk '{print $6}')
            web_ui=$(echo "$flink_app" | awk '{print $10}')
            echo -e "  Application ID : ${GREEN}$app_id${NC}"
            echo -e "  状态           : ${GREEN}$app_status${NC}"
            echo -e "  Web UI         : ${GREEN}$web_ui${NC}"
        else
            echo -e "  ${YELLOW}Flink Session 未启动${NC}"
        fi
    else
        echo -e "  ${YELLOW}YARN 离线，跳过 Flink 状态检查${NC}"
    fi


    # --- Kafka ---
    print_msg "KAFKA" "Kafka 进程:"
    for node in "${KAFKA_NODES[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep Kafka")
        if [ -n "$out" ]; then
            echo -e "  $node : ${GREEN}$out${NC}"
        else
            echo -e "  $node : ${RED}未运行${NC}"
        fi
    done

    # --- DolphinScheduler ---
    print_msg "DS" "DolphinScheduler 进程:"
    # 合并所有 DS 节点并去重
    all_ds_nodes=($(printf "%s\n" "${DS_MASTER_NODES[@]}" "${DS_API_NODES[@]}" "${DS_ALERT_NODES[@]}" "${DS_WORKER_NODES[@]}" | sort -u))
    for node in "${all_ds_nodes[@]}"; do
        out=$(ssh_exec "$node" "jps 2>/dev/null | grep -E 'MasterServer|ApiApplicationServer|AlertServer|WorkerServer'")
        if [ -n "$out" ]; then
            echo -e "  ${GREEN}$node${NC}:"
            echo "$out" | while read line; do echo -e "    ${GREEN}$line${NC}"; done
        else
            echo -e "  ${RED}$node${NC}: 无 DS 进程"
        fi
    done
}

# ======================== 命令入口 ========================
case "$1" in
    start-zookeeper)    start_zookeeper    ;;
    stop-zookeeper)     stop_zookeeper     ;;
    start-hdfs)         start_hdfs         ;;
    stop-hdfs)          stop_hdfs          ;;
    start-yarn)         start_yarn         ;;
    stop-yarn)          stop_yarn          ;;
    start-historyserver) start_historyserver ;;
    stop-historyserver)  stop_historyserver  ;;
    start-metastore)    start_metastore    ;;
    stop-metastore)     stop_metastore     ;;
    start-spark)        start_spark        ;;   # 已保留，但默认不启动独立 Worker
    stop-spark)         stop_spark         ;;
    start-spark-thrift) start_spark_thrift_server ;;
    stop-spark-thrift)  stop_spark_thrift_server  ;;
    start-ds-master)    start_ds_master    ;;
    stop-ds-master)     stop_ds_master     ;;
    start-ds-api)       start_ds_api       ;;
    stop-ds-api)        stop_ds_api        ;;
    start-ds-alert)     start_ds_alert     ;;
    stop-ds-alert)      stop_ds_alert      ;;
    start-ds-worker)    start_ds_worker    ;;
    stop-ds-worker)     stop_ds_worker     ;;
    start-ds)           start_ds           ;;
    stop-ds)            stop_ds            ;;
    start-kafka)        start_kafka        ;;
    stop-kafka)         stop_kafka         ;;
    start-flink)        start_flink        ;;
    stop-flink)         stop_flink         ;;
    start-all)          start_all          ;;
    stop-all)           stop_all           ;;
    restart-all)        stop_all; sleep 3; start_all ;;
    status)             check_status       ;;
    *)
        echo "用法: $0 <命令>"
        echo "  分组件启停:"
        echo "    start-zookeeper | stop-zookeeper"
        echo "    start-hdfs | stop-hdfs"
        echo "    start-yarn | stop-yarn"
        echo "    start-historyserver | stop-historyserver"
        echo "    start-metastore | stop-metastore"
        echo "    start-spark | stop-spark"
        echo "    start-spark-thrift | stop-spark-thrift"
        echo "    start-ds-master | stop-ds-master"
        echo "    start-ds-api | stop-ds-api"
        echo "    start-ds-alert | stop-ds-alert"
        echo "    start-ds-worker | stop-ds-worker"
        echo "    start-ds | stop-ds"
        echo "    start-kafka | stop-kafka"
        echo "    start-flink | stop-flink"
        echo "  全局管理:"
        echo "    start-all | stop-all | restart-all"
        echo "    status"
        exit 1
        ;;
esac

Hive Metastore 集成 Kerberos

在 KDC 服务器上为 Hive 创建主体并导出 keytab

bash

sudo kadmin.local

addprinc -randkey hive/node1@HADOOP.COM
addprinc -randkey hive/node2@HADOOP.COM

ktadd -k /etc/security/keytabs/hive.keytab hive/node1@HADOOP.COM hive/node2@HADOOP.COM

quit

同步到所有节点，并给予权限

bash

sudo xsync node1 node2 /etc/security/keytabs/hive.keytab

xcall node1 node2 "sudo ls -la /etc/security/keytabs/hive.keytab"

xcall node1 node2 sudo chown hdfs:hadoop /etc/security/keytabs/hive.keytab
xcall node1 node2 "sudo ls -la /etc/security/keytabs/hive.keytab"

修改 hive-site.xml，同步配置并重启 metastore

增加 kerberos 认证

xml

<configuration>
    <!-- 基础配置：HDFS 仓库目录 -->
    <property>
        <name>hive.metastore.warehouse.dir</name>
        <value>/bigdata/hive/warehouse</value>
    </property>

    <!-- 元数据库连接 (所有节点连同一个 MySQL) 需要注意 lib 目录下存在 mysql-connector 的 jar -->
    <property>
        <name>javax.jdo.option.ConnectionURL</name>
        <value>
            jdbc:mysql://node1:3306/hive_metastore?createDatabaseIfNotExist=true&amp;useSSL=false&amp;serverTimezone=Asia/Shanghai
        </value>
    </property>
    <property>
        <name>javax.jdo.option.ConnectionDriverName</name>
        <value>com.mysql.cj.jdbc.Driver</value>
    </property>
    <property>
        <name>javax.jdo.option.ConnectionUserName</name>
        <value>hive</value>
    </property>
    <property>
        <name>javax.jdo.option.ConnectionPassword</name>
        <value>Ab@123</value>
    </property>

    <!-- Metastore HA 配置 -->
    <!-- Hive Metastore 服务应该监听哪个地址 -->
    <property>
        <name>hive.metastore.uris</name>
        <value>thrift://node1:9083,thrift://node2:9083</value>
    </property>

    <!-- HiveServer2 HA 配置 (基于 ZooKeeper) -->
    <!-- HiveServer2 监听的主机地址 -->
    <property>
        <name>hive.server2.thrift.bind.host</name>
        <value>0.0.0.0</value>
    </property>
    <!-- HiveServer2 监听的端口 -->
    <property>
        <name>hive.server2.thrift.port</name>
        <value>10000</value>
    </property>
    <!-- 开启 HS2 的 ZooKeeper 注册 -->
    <property>
        <name>hive.server2.support.dynamic.service.discovery</name>
        <value>true</value>
    </property>
    <!-- 配置 ZooKeeper 命名空间 -->
    <!-- 所有 HS2 实例会在 ZK 的这个目录下注册临时节点 -->
    <property>
        <name>hive.zookeeper.namespace</name>
        <value>hiveserver2</value>
    </property>
    <!-- 指定 ZooKeeper 集群 -->
    <property>
        <name>hive.zookeeper.quorum</name>
        <value>node1:2181,node2:2181,node3:2181</value>
    </property>
    <!-- ZooKeeper 命名空间 -->
    <property>
        <name>hive.zookeeper.client.port</name>
        <value>2181</value>
    </property>

    <!-- Java 虚拟机临时目录，本地磁盘 -->
    <property>
        <name>java.io.tmpdir</name>
        <value>/tmp/hive</value>
    </property>
    <!-- Hive HDFS 的目录，需要确保目录存在并且启动用户可以写入，可以直接给个 777 或者改变所属人 -->
    <property>
        <name>hive.exec.scratchdir</name>
        <value>hdfs:///bigdata/hive/scratchdir</value>
    </property>
    <!-- Hive 存放资源文件的 Hadoop 地址 -->
    <property>
        <name>hive.downloaded.resources.dir</name>
        <value>/tmp/hive/resources</value>
    </property>

    <!-- KERBEROS 认证 -->
    <property>
        <name>hive.server2.authentication</name>
        <value>KERBEROS</value>
    </property>
    <!-- 直接禁用掉 hive 本身安全认证，之后直接上 kerberos -->
    <property>
        <name>hive.security.authorization.enabled</name>
        <value>false</value>
    </property>
    <property>
        <name>hive.security.authorization.createtable.owner.grants</name>
        <value>ALL</value>
    </property>

    <!-- 开启并发支持（多会话），查询时以用户身份执行 -->
    <property>
        <name>hive.server2.enable.doAs</name>
        <value>true</value>
    </property>
    <!-- 开启多线程模式（提高并发性能） -->
    <property>
        <name>hive.server2.thrift.max.worker.threads</name>
        <value>500</value>
    </property>
    <!-- 直接关掉 hive 的轮询功能，因为 HS2 启动时会强制初始化 NotificationEventPoll，如果初始化失败，HS2 就直接报错退出，这个未来版本的功能直接禁用也没问题，HA 不受影响-->
    <property>
        <name>hive.metastore.event.db.notification.api.auth</name>
        <value>false</value>
    </property>
    <property>
        <name>hive.metastore.notifications</name>
        <value>false</value>
    </property>

    <!-- 执行引擎改为 spark -->
    <property>
        <name>hive.execution.engine</name>
        <value>spark</value>
    </property>
    <property>
        <name>spark.home</name>
        <value>/opt/module/spark-3.5.8-bin-hadoop3</value>
    </property>
    <property>
        <name>spark.master</name>
        <value>yarn</value>
    </property>
    <property>
        <name>spark.submit.deployMode</name>
        <value>client</value>
    </property>
    <property>
        <name>spark.yarn.jars</name>
        <value>hdfs://hadoop/bigdata/spark/lib/*</value>
    </property>
    <property>
        <name>spark.executor.memory</name>
        <value>2g</value>
    </property>
    <property>
        <name>spark.executor.cores</name>
        <value>2</value>
    </property>

    <!-- 打印表头 -->
    <property>
        <name>hive.cli.print.header</name>
        <value>true</value>
    </property>
    <!-- 打印库名称 -->
    <property>
        <name>hive.cli.print.current.db</name>
        <value>true</value>
    </property>

    <!-- Hive Metastore Kerberos 认证 -->
    <property>
        <name>hive.metastore.sasl.enabled</name>
        <value>true</value>
    </property>
    <property>
        <name>hive.metastore.kerberos.principal</name>
        <value>hive/_HOST@HADOOP.COM</value>
    </property>
    <property>
        <name>hive.metastore.kerberos.keytab.file</name>
        <value>/etc/security/keytabs/hive.keytab</value>
    </property>
</configuration>

验证
启动 metastore，然后使用命令 hive 进入到命令行，执行 show databases; 查看输出结果，如果可以则成功

使用 Kyuubi 并集成 Kerberos

Kyuubi 也是一个查询网关，比 spark thrift server 更好用，他的设计目标就是兼容 hiveserver2 生态

将安装包复制到目标节点（node1、node2、nod3）并设置环境变量

为 kyuubi 生成 kerberos 凭证

bash

sudo kadmin.local

addprinc -randkey kyuubi/node1@HADOOP.COM
addprinc -randkey kyuubi/node2@HADOOP.COM
addprinc -randkey kyuubi/node3@HADOOP.COM

ktadd -k /tmp/kyuubi-node1.keytab kyuubi/node1@HADOOP.COM
ktadd -k /tmp/kyuubi-node2.keytab kyuubi/node2@HADOOP.COM
ktadd -k /tmp/kyuubi-node3.keytab kyuubi/node3@HADOOP.COM

quit

bash

sudo scp /tmp/kyuubi-node1.keytab node1:/etc/security/keytabs/kyuubi.keytab
sudo scp /tmp/kyuubi-node2.keytab node2:/etc/security/keytabs/kyuubi.keytab
sudo scp /tmp/kyuubi-node3.keytab node3:/etc/security/keytabs/kyuubi.keytab

xcall all "sudo chown hdfs:hdfs /etc/security/keytabs/kyuubi.keytab"
xcall all "sudo chmod 400 /etc/security/keytabs/kyuubi.keytab"

配置 $KYUUBI_HOME/conf/kyuubi-env.sh

bash

#!/usr/bin/env bash

export JAVA_HOME=/opt/module/jdk1.8.0_202
export HADOOP_HOME=/opt/module/hadoop-3.3.6
export SPARK_HOME=/opt/module/spark-3.5.8-bin-hadoop3
export KYUUBI_JAVA_OPTS="-Dsun.security.krb5.debug=true"

配置 $KYUUBI_HOME/conf/kyuubi-defaults.conf
删除原有数据，配置
bash
```
# Kyuubi 服务前端绑定配置
kyuubi.frontend.bind.host 0.0.0.0
kyuubi.frontend.port 10009

# Kerberos 认证配置
kyuubi.authentication KERBEROS
kyuubi.kinit.principal kyuubi/_HOST@HADOOP.COM
kyuubi.kinit.keytab /etc/security/keytabs/kyuubi.keytab

# 高可用 HA 配置 (基于 ZooKeeper)
kyuubi.ha.addresses node1:2181,node2:2181,node3:2181
kyuubi.ha.namespace kyuubi

# 后端 Spark 引擎配置 (客户端模式、YARN)
kyuubi.engine.type SPARK_SQL
kyuubi.engine.share.level USER
kyuubi.session.engine.initialize.timeout 120000
kyuubi.engine.spark.master yarn
kyuubi.engine.spark.deploy-mode client

# 与 Hive Metastore 集成 (以便获取元数据)
kyuubi.frontend.thrift.binary.hive.metastore.uris thrift://node1:9083,thrift://node2:9083
# 超时时间
kyuubi.session.engine.initialize.timeout 300000

kyuubi.engine.spark.proxy.user=
```
- kyuubi.frontend.bind.host 0.0.0.0: 让 Kyuubi 监听所有网络接口
- kyuubi.frontend.port 10009: 指定 Kyuubi 服务的 JDBC 端口，方便客户端连接
- kyuubi.authentication KERBEROS: 为 Kyuubi 前端开启 Kerberos 认证，使外部客户端必须通过 Kerberos 票据才能访问
- kyuubi.kinit.principal: 设置 Kyuubi 服务的 Kerberos 主体，_HOST 会自动替换为节点的实际主机名
- kyuubi.kinit.keytab: 指定与主体对应的 Keytab 文件路径
- kyuubi.ha.addresses: 生产环境必须配置的 HA 集群地址
- kyuubi.ha.namespace: Kyuubi 服务在 ZooKeeper 上用于注册的根路径
- kyuubi.engine.type SPARK_SQL: 指定 Kyuubi 使用的后端计算引擎
- kyuubi.engine.share.level CONNECTION:
  - 引擎共享级别，CONNECTION 模式下，每个客户端连接会启动一个独立的 Spark 应用，实现了最彻底的资源隔离，避免一个故障影响所有用户
  - USER 模式下，一个用户会共享一个引擎
  - SERVER 模式下，整个 Kyuubi 服务共享一个引擎
- kyuubi.engine.spark.master yarn & kyuubi.engine.spark.deploy-mode client: 指定将 Spark SQL 任务提交到 YARN 集群，并使用 client 模式运行 Driver

修改 hadoop core-site.xml 代理配置

xml

<property>
    <name>hadoop.proxyuser.kyuubi.hosts</name>
    <value>*</value>
</property>
<property>
    <name>hadoop.proxyuser.kyuubi.groups</name>
    <value>*</value>
</property>

修改 yarn-site.xml

xml

<property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle,spark_shuffle</value>
    <description>逗号分隔的辅助服务列表，新增 spark_shuffle</description>
</property>

<property>
    <name>yarn.nodemanager.aux-services.spark_shuffle.class</name>
    <value>org.apache.spark.network.yarn.YarnShuffleService</value>
    <description>Spark Shuffle 服务的实现类</description>
</property>

注意修改 spark-defaults.conf 要一致

text

# 运行模式
spark.master                     yarn

# 历史服务器
spark.eventLog.enabled           true
spark.eventLog.dir               hdfs:///bigdata/spark/logs

# 序列化
spark.serializer                 org.apache.spark.serializer.KryoSerializer

# 内存（Thrift Server 场景建议调大）
spark.driver.memory              4g
spark.executor.memory             2g

# 动态内存分配
spark.dynamicAllocation.enabled              true

# 必须有 External Shuffle Service（让 Executor 退出时不丢数据）
spark.shuffle.service.enabled                true

# 设置 Executor 数量的上下边界
spark.dynamicAllocation.minExecutors         1
spark.dynamicAllocation.maxExecutors         10

# 闲置多久后回收 Executor
spark.dynamicAllocation.executorIdleTimeout         60s

# 有多少任务积压时申请新 Executor
spark.dynamicAllocation.schedulerBacklogTimeout     1s

# Hadoop 配置位置
spark.yarn.dist.confDir          /opt/module/hadoop-3.3.6/etc/hadoop

# Spark 与 Hive 集成
spark.sql.catalogImplementation  hive

# SQL 自适应执行（可根据数据量自动优化，动态合并小分区、切换 JOIN 策略、优化倾斜 JOIN）
spark.sql.adaptive.enabled               true
spark.sql.adaptive.coalescePartitions.enabled  true

# 使用钨丝计划提升计算效率，绕过 JVM 低效机制，直接操纵内存
spark.sql.tungsten.enabled               true

# 关闭推测执行避免重复计算，测试资源紧张关闭，若任务跑的特别慢，spark 会在另一个节点再启动一个完全相同副本跑
spark.speculation                false

# 并行度设置（根据集群总核心数调整，公式：集群总核数 * 2~3）
spark.default.parallelism         8
spark.sql.shuffle.partitions      8

spark.sql.hive.metastore.kerberos.principal hive/_HOST@HADOOP.COM
spark.sql.hive.metastore.sasl.enabled true

使用 $KYUUBI_HOME/bin/kyuubi start 启动

链接

bash

kinit -kt /etc/security/keytabs/hdfs.keytab hdfs/node1@HADOOP.COM
beeline -u "jdbc:hive2://node1:10009/default;principal=kyuubi/node1@HADOOP.COM"

01.Mybatis

02.Spring

03.SpringMVC

04.SSM

05.MybatisPlus

06.SpringBoot

07.SpringBootWeb

08.Swagger

09.SpringCloud

10.SpringCloudAlibaba

11.Others

01.基础

02.爬虫

传统大数据集群配置

环境说明

资源配置说明

启动顺序

模板机

通用模板机

环境搭建

Zookeeper

Hadoop HA

Spark

Hive

MySQL

Hive Metastore && Hive Server 2

Spark On Hive

DolphinScheduler

Kafka

Flink

Kerberos 鉴权（单用户 HDFS 测试验证）

kerberos kdc

Zookeeper 集成 Kerberos

HADOOP 集成 kerberos

HDFS 集成 kerberos

Yarn

MapReduce

新的群起集群脚本

Hive Metastore 集成 Kerberos

使用 Kyuubi 并集成 Kerberos

传统大数据集群配置 ​

环境说明 ​

资源配置说明 ​

启动顺序 ​

模板机 ​

通用模板机 ​

环境搭建 ​

Zookeeper ​

Hadoop HA ​

Spark ​

Hive ​

MySQL ​

Hive Metastore && Hive Server 2 ​

Spark On Hive ​

DolphinScheduler ​

Kafka ​

Flink ​

Kerberos 鉴权（单用户 HDFS 测试验证） ​

kerberos kdc ​

Zookeeper 集成 Kerberos ​

HADOOP 集成 kerberos ​

HDFS 集成 kerberos ​

Yarn ​

MapReduce ​

新的群起集群脚本 ​

Hive Metastore 集成 Kerberos ​

使用 Kyuubi 并集成 Kerberos ​

传统大数据集群配置

环境说明

资源配置说明

启动顺序

模板机

通用模板机

环境搭建

Zookeeper

Hadoop HA

Spark

Hive

MySQL

Hive Metastore && Hive Server 2

Spark On Hive

DolphinScheduler

Kafka

Flink

Kerberos 鉴权（单用户 HDFS 测试验证）

kerberos kdc

Zookeeper 集成 Kerberos

HADOOP 集成 kerberos

HDFS 集成 kerberos

Yarn

MapReduce

新的群起集群脚本

Hive Metastore 集成 Kerberos

使用 Kyuubi 并集成 Kerberos
